JLS 6-35 kV High-Voltage Metering Unit
Instrument Transformers & Metering Units · Drawing-confirmed project supply
KOVYEL JLS high-voltage metering units provide combined current and voltage measurement for outdoor systems from 6 to 35 kV.
Selection begins with the actual project interface.
KOVYEL JLS high-voltage metering units provide combined current and voltage measurement for outdoor systems from 6 to 35 kV.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

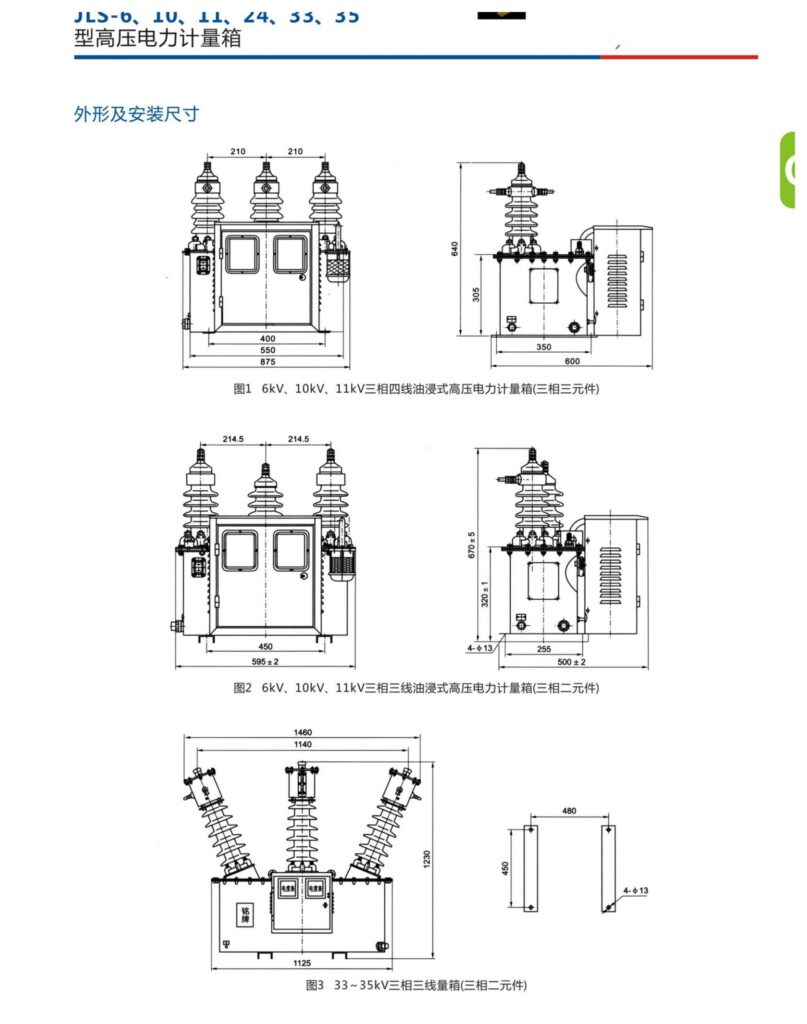

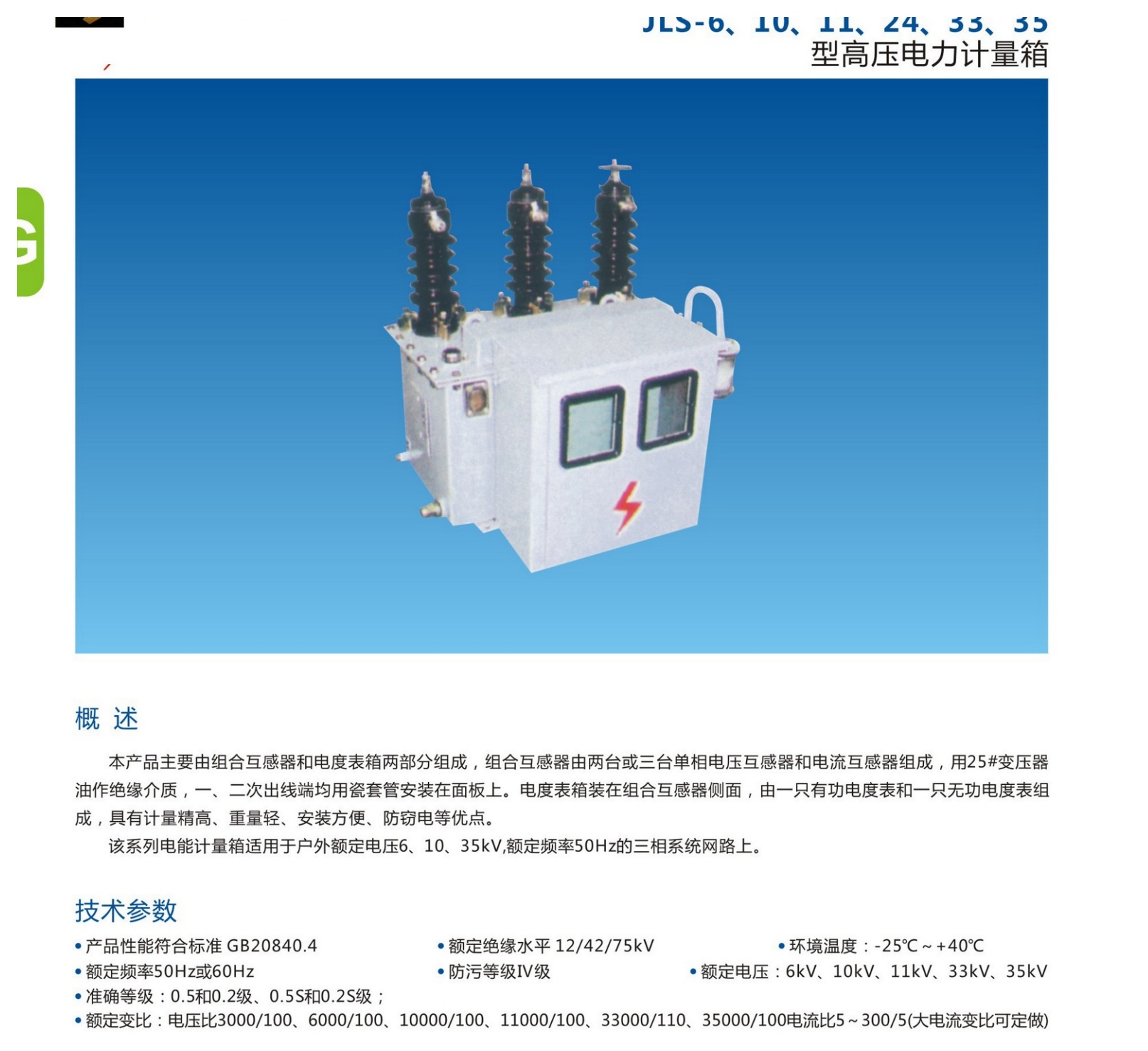

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JLS 6-35 kV High-Voltage Metering Unit |
|---|---|
| Category | Instrument Transformers & Metering Units |
| Representative range / models | JLS-6, JLS-10, JLS-11, JLS-24, JLS-33 and JLS-35 |
| Standards / reference basis | Catalogue ratings and project requirements confirmed by KOVYEL before supply |
| Typical applications | High-voltage energy metering; Utility revenue-metering installations; Outdoor distribution substations |
| System voltage | 6-35 kV depending on model |
| Voltage ratios | 3000/100, 6000/100, 11000/110, 33000/110 or 35000/100 V options |
| Primary current range | 5-300 A |
| Secondary current | 5 A |
| Voltage accuracy | 0.2 or 0.5 |
| Current accuracy | 0.2(S) or 0.5(S) |
| Maximum insulation level | 40.5/95/185 kV |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
High-voltage energy metering
6-35 kV system range
Utility revenue-metering installations
Combined current and voltage measurement
Outdoor distribution substations
Multiple ratio and accuracy options
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
