GN19-12(C) Indoor AC Disconnect Switch
Indoor Disconnect & Earthing Switches · Drawing-confirmed project supply
KOVYEL GN19-12(C) indoor disconnect switches provide manual isolation for 12 kV switchgear in standard and C-type arrangements.
Selection begins with the actual project interface.
KOVYEL GN19-12(C) indoor disconnect switches provide manual isolation for 12 kV switchgear in standard and C-type arrangements.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

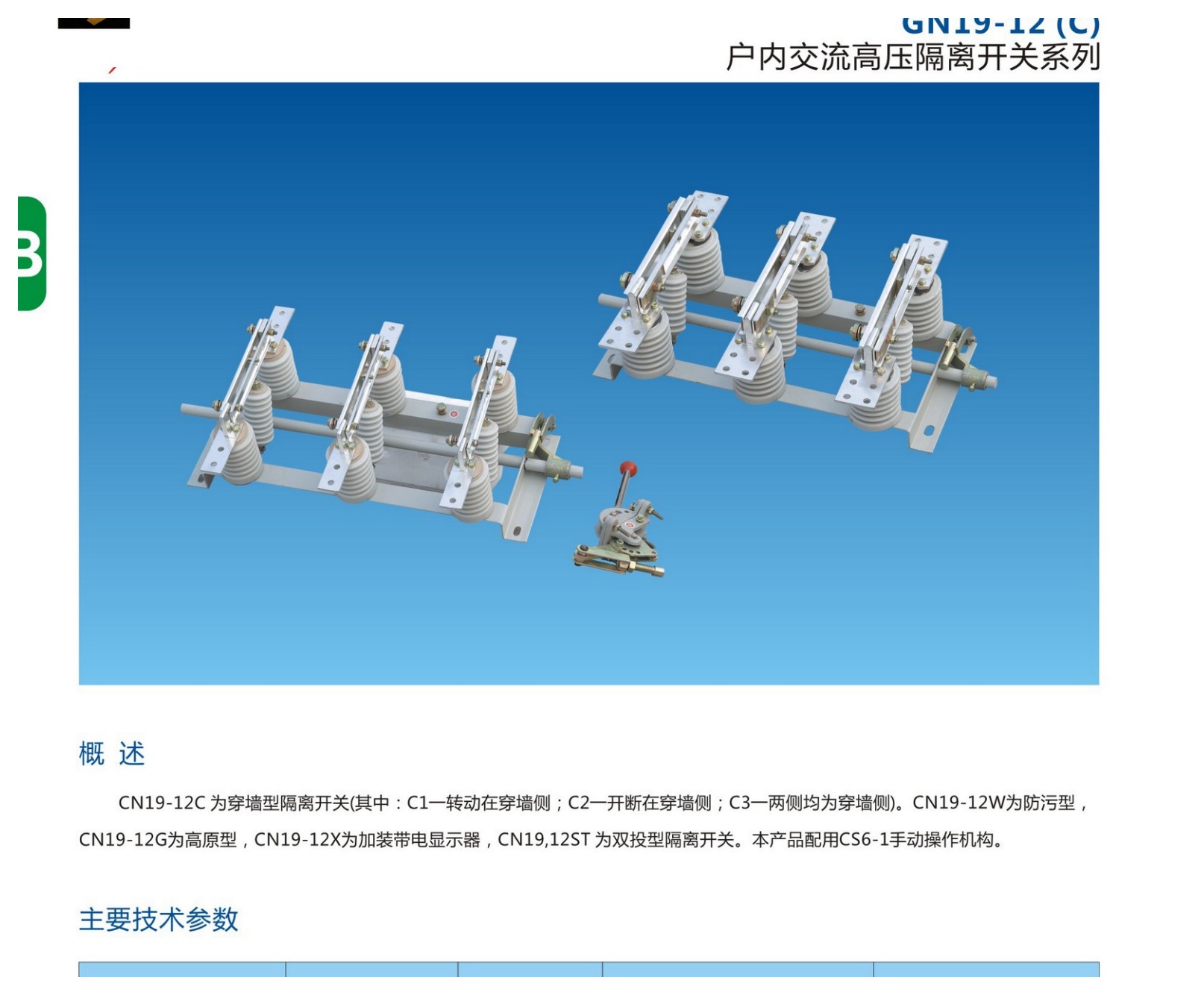

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | GN19-12(C) Indoor AC Disconnect Switch |
|---|---|
| Category | Indoor Disconnect & Earthing Switches |
| Representative range / models | GN19-12 and GN19-12C, 400-1250 A |
| Standards / reference basis | Catalogue ratings and project requirements confirmed by KOVYEL before supply |
| Typical applications | Indoor switchgear and distribution panels; Medium-voltage substations; Power-system isolation and maintenance |
| Rated voltage | 12 kV |
| Rated current | 400, 630, 1000 or 1250 A |
| Short-time withstand current | 12.5, 20 or 31.5 kA |
| Peak withstand current | 31.5, 50 or 80 kA |
| Configuration | Standard and C-type arrangements |

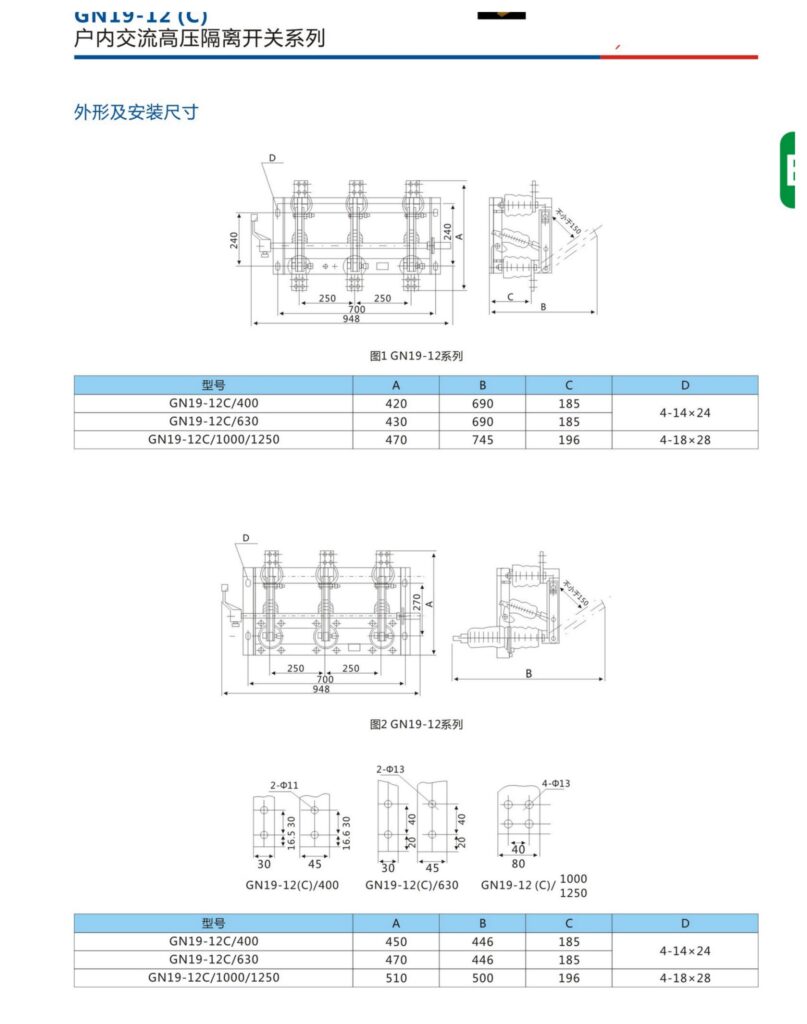

| Pole and terminal dimensions | Selected by model and switchgear layout |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Indoor switchgear and distribution panels
Standard and C-type configurations
Medium-voltage substations
400-1250 A current range
Power-system isolation and maintenance
Compact switchgear installation
