35 kV Heat-Shrink Cable Terminations
Cable Terminations & Insulation Accessories · Drawing-confirmed project supply
KOVYEL 35 kV heat-shrink cable terminations cover indoor and outdoor single-core and three-core cables from 50 to 500 mm².
Selection begins with the actual project interface.
KOVYEL 35 kV heat-shrink cable terminations cover indoor and outdoor single-core and three-core cables from 50 to 500 mm².
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

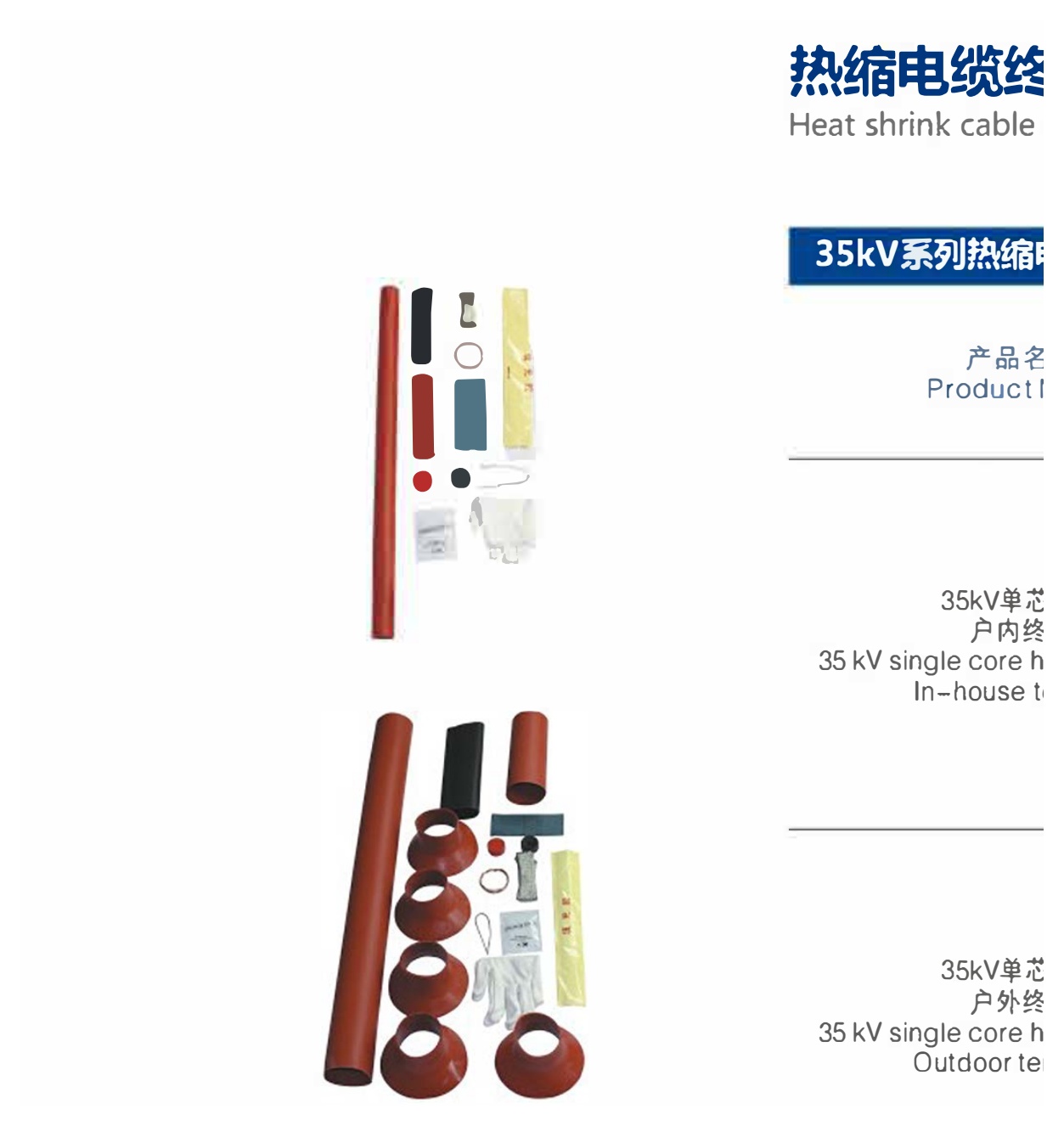

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

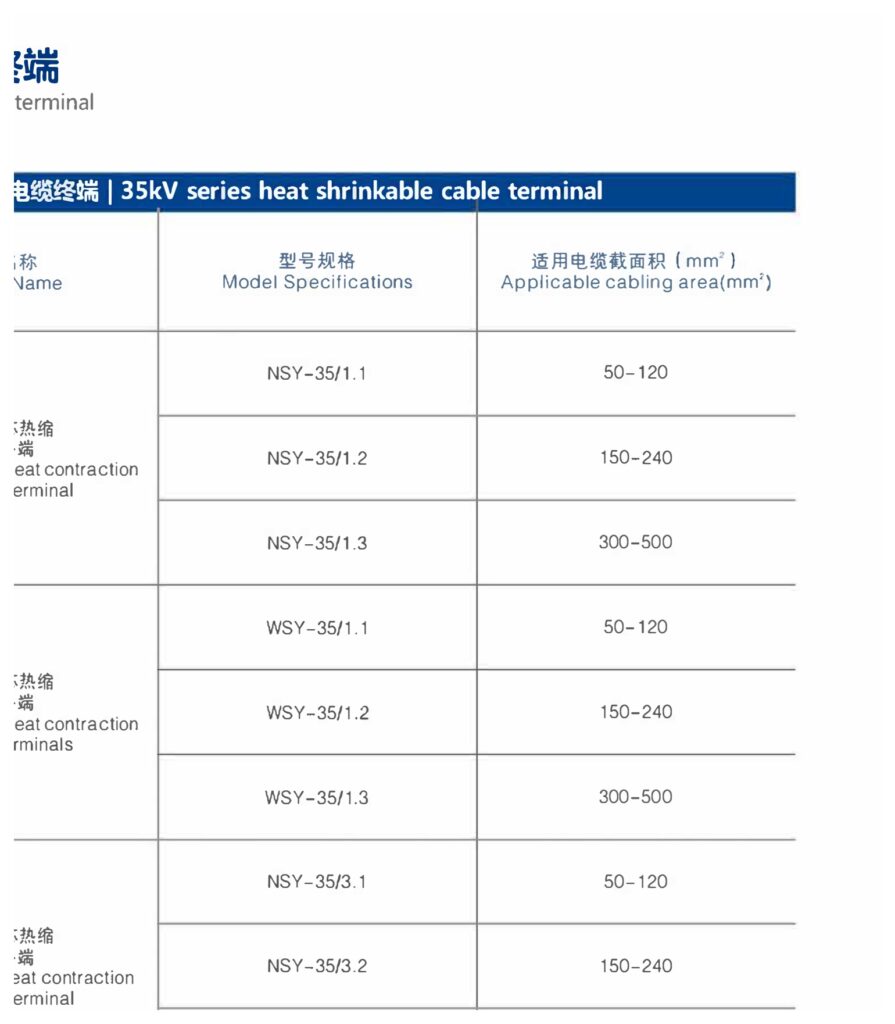

The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | 35 kV Heat-Shrink Cable Terminations |
|---|---|
| Category | Cable Terminations & Insulation Accessories |
| Representative range / models | NSY-35 and WSY-35; 50-500 mm² |
| Standards / reference basis | Catalogue technical data and project requirements confirmed by KOVYEL before supply |
| Typical applications | Power cable termination and connection; PVC, XLPE and rubber-insulated cables; Utility, building and industrial distribution systems |
| Rated voltage | 35 kV class |
| Indoor models | NSY-35/1.1 to NSY-35/1.3 and NSY-35/3.1 to NSY-35/3.3 |
| Outdoor models | WSY-35/1.1 to WSY-35/1.3 and WSY-35/3.1 to WSY-35/3.3 |
| Core configurations | Single-core and three-core |
| Conductor range | 50-120, 150-240 or 300-500 mm² |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Power cable termination and connection
Heat-shrink insulation system
PVC, XLPE and rubber-insulated cables
Multiple conductor-size ranges
Utility, building and industrial distribution systems
Single-core and multicore configurations
