GTL, GT & GL Compression Cable Connectors
Cable Lugs & Terminals · Drawing-confirmed project supply
KOVYEL GTL, GT and GL compression connector tubes join copper-aluminium, copper-copper and aluminium-aluminium conductors. Model ranges cover conductor sections from 10 to 630 mm² with material-specific bore and length dimensions.
Selection begins with the actual project interface.
KOVYEL GTL, GT and GL compression connector tubes join copper-aluminium, copper-copper and aluminium-aluminium conductors. Model ranges cover conductor sections from 10 to 630 mm² with material-specific bore and length dimensions.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | GTL, GT & GL Compression Cable Connectors |
|---|---|
| Category | Cable Lugs & Terminals |
| Representative range / models | GTL-10 to GTL-630; GT-10 to GT-630; GL-10 to GL-630 |
| Standards / reference basis | GTL, GT and GL connector tube dimension tables confirmed by KOVYEL |
| Typical applications | In-line cable splicing; Copper-aluminium transition joints; Copper conductor joints; Aluminium conductor joints |

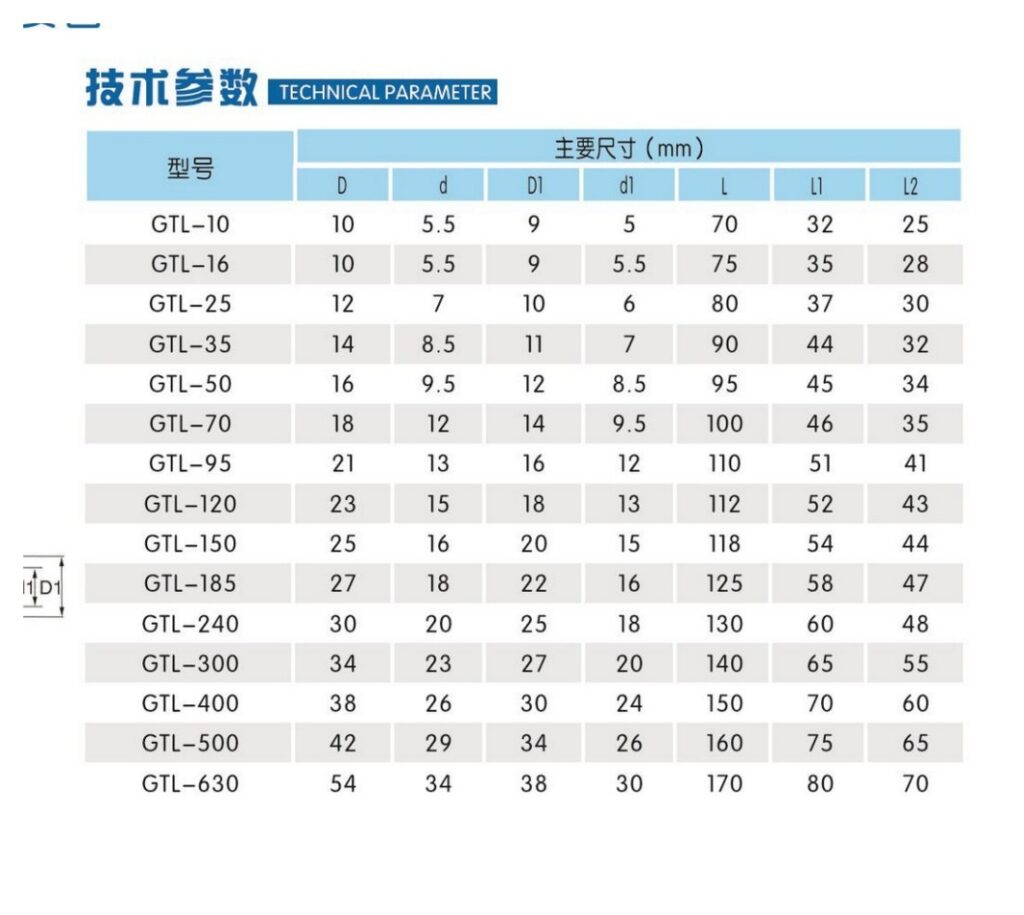

| GTL range | GTL-10 to GTL-630; bimetallic copper-aluminium connector; total length 70-170 mm |
| GT range | GT-10 to GT-630; copper through-connector; length 50-170 mm |
| GL range | GL-10 to GL-630; aluminium through-connector; length 55-170 mm |
| Conductor range | 10-630 mm² |
| Joint type | Compression connection |
| Selection | Confirm both conductor materials, sections, outside diameters and compression tooling |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
In-line cable splicing

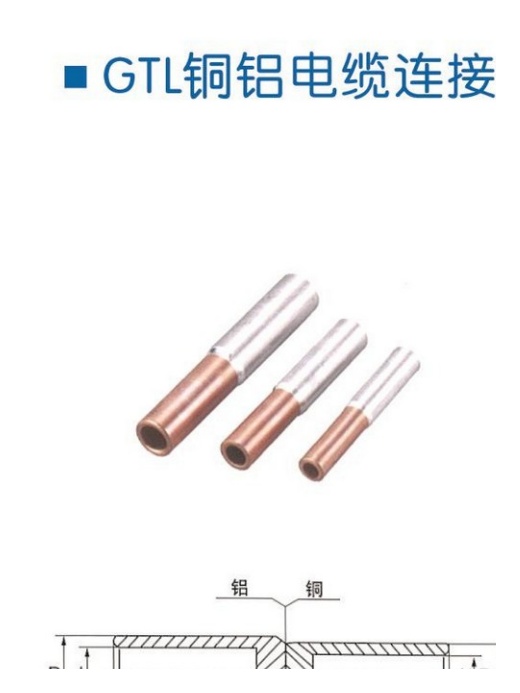

GTL bimetallic transition construction
Copper-aluminium transition joints
GT copper connector tubes
Copper conductor joints
GL aluminium connector tubes
Aluminium conductor joints
10-630 mm² conductor coverage
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
