DL JB 12/24 kV 630 A Shielded Fore-Connector
Separable Cable Connectors & Bushings · Drawing-confirmed project supply
KOVYEL DL JB shielded fore-connectors provide fully screened, sealed and separable 630 A cable connections for systems up to 24 kV.
Selection begins with the actual project interface.
KOVYEL DL JB shielded fore-connectors provide fully screened, sealed and separable 630 A cable connections for systems up to 24 kV.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

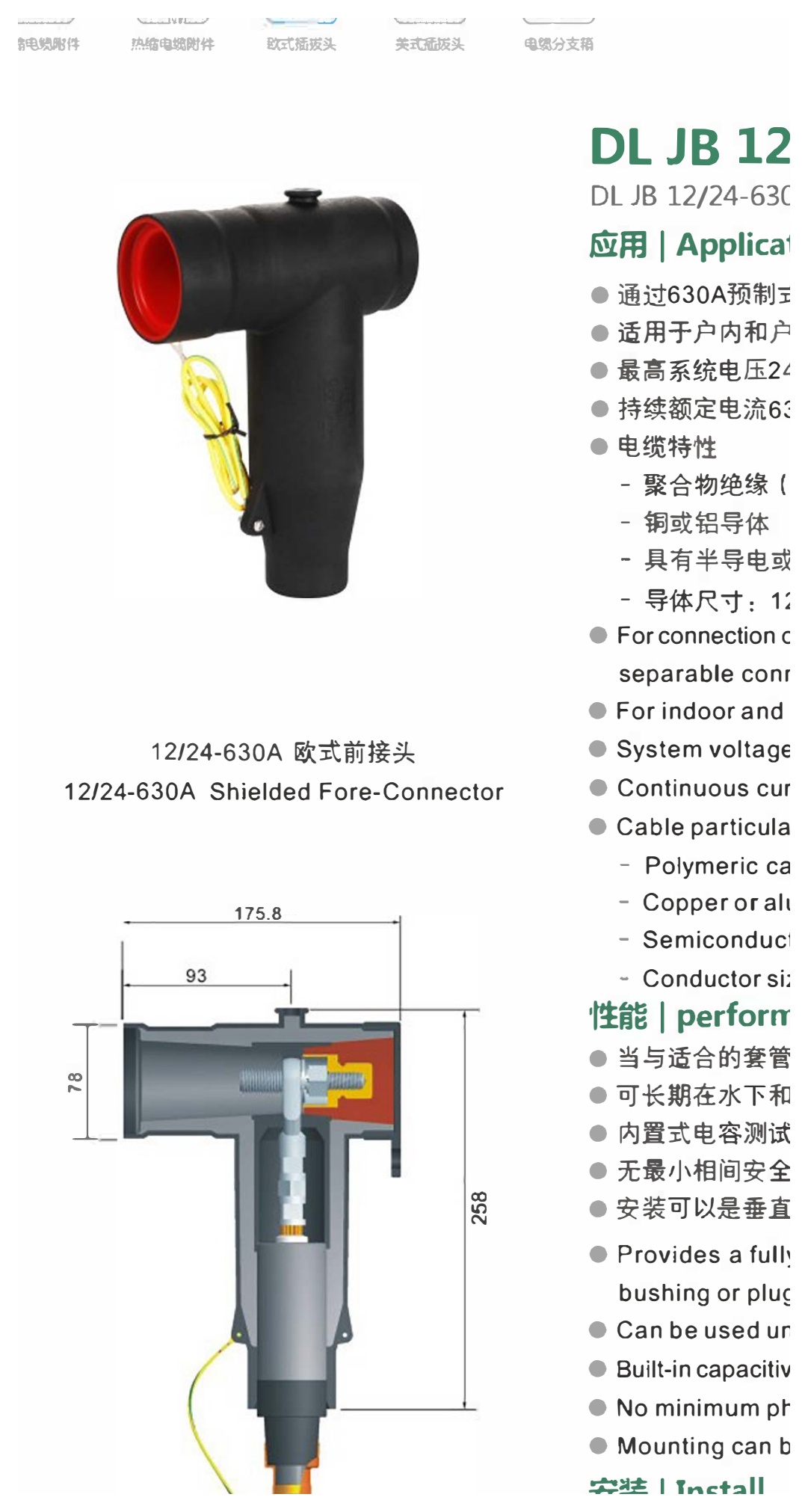

Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

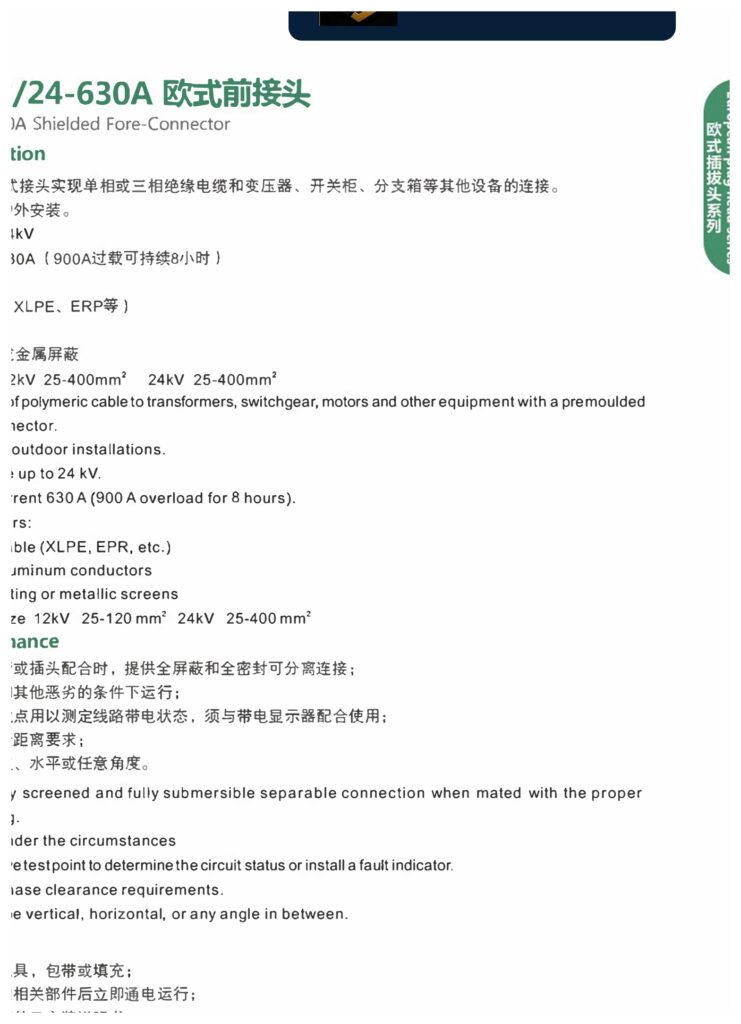

The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | DL JB 12/24 kV 630 A Shielded Fore-Connector |
|---|---|
| Category | Separable Cable Connectors & Bushings |
| Representative range / models | DL JB-12/630 and DL JB-24/630 |
| Standards / reference basis | Catalogue technical data and project requirements confirmed by KOVYEL before supply |
| Typical applications | Connection of polymeric cable to transformers and switchgear; Indoor and outdoor medium-voltage installations; Cable branch boxes, motors and distribution equipment |
| System voltage | Up to 24 kV |
| Continuous current | 630 A |
| Overload current | 900 A for 8 hours |
| Cable insulation | XLPE, EPR or equivalent polymeric insulation |
| Conductor material | Copper or aluminum |
| Conductor range | 12 kV: 25-500 mm²; 24 kV: 35-400 mm² |
| 12 kV insulation diameter | 16.6-37.2 mm depending on conductor size |
| 24 kV insulation diameter | 18.6-33.2 mm depending on conductor size |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Connection of polymeric cable to transformers and switchgear
Fully screened and submersible connection
Indoor and outdoor medium-voltage installations
Built-in capacitive test point
Cable branch boxes, motors and distribution equipment
Vertical, horizontal or angled mounting
