What is GW9-12G Outdoor High-Voltage Disconnect Switch?
KOVYEL GW9-12G outdoor disconnect switches provide compact visible isolation for 12 kV overhead distribution systems. The listed range is GW9-12/200 to GW9-12/800; HGW9 variants.
KOVYEL · OUTDOOR DISCONNECT SWITCHES
PROJECT-MATCHED OVERHEAD LINE EQUIPMENT
GW9-12G Outdoor High-Voltage Disconnect Switch
Outdoor Disconnect Switches · Drawing-confirmed project supply
KOVYEL GW9-12G outdoor disconnect switches provide compact visible isolation for 12 kV overhead distribution systems.
Product categoryOutdoor Disconnect Switches
Representative rangeGW9-12/200 to GW9-12/800
Technical basisCatalogue ratings and project requirements confirmed by KOVYEL before supply
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW
Selection begins with the actual project interface.
KOVYEL GW9-12G outdoor disconnect switches provide compact visible isolation for 12 kV overhead distribution systems.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

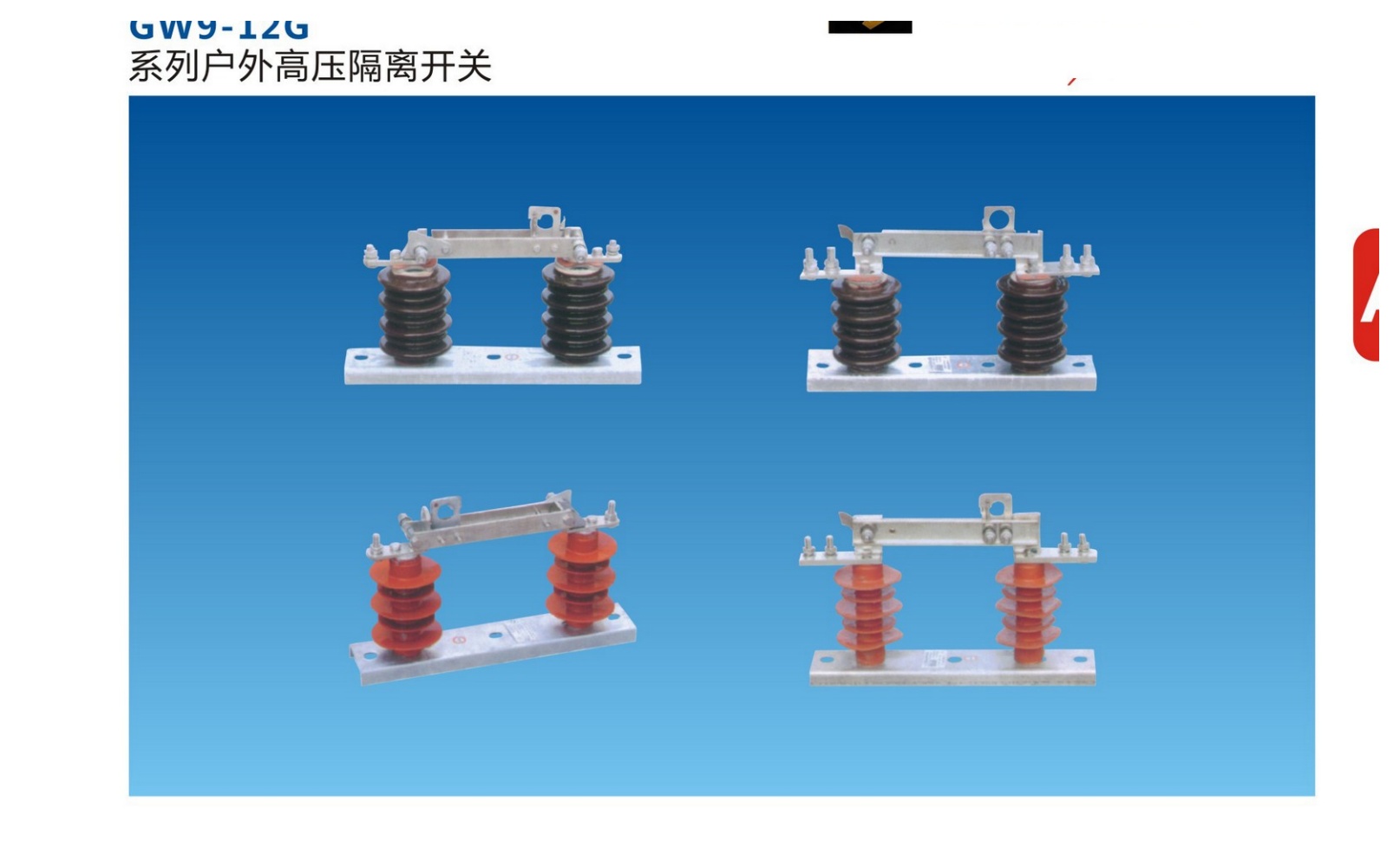

PRODUCT IMAGES
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

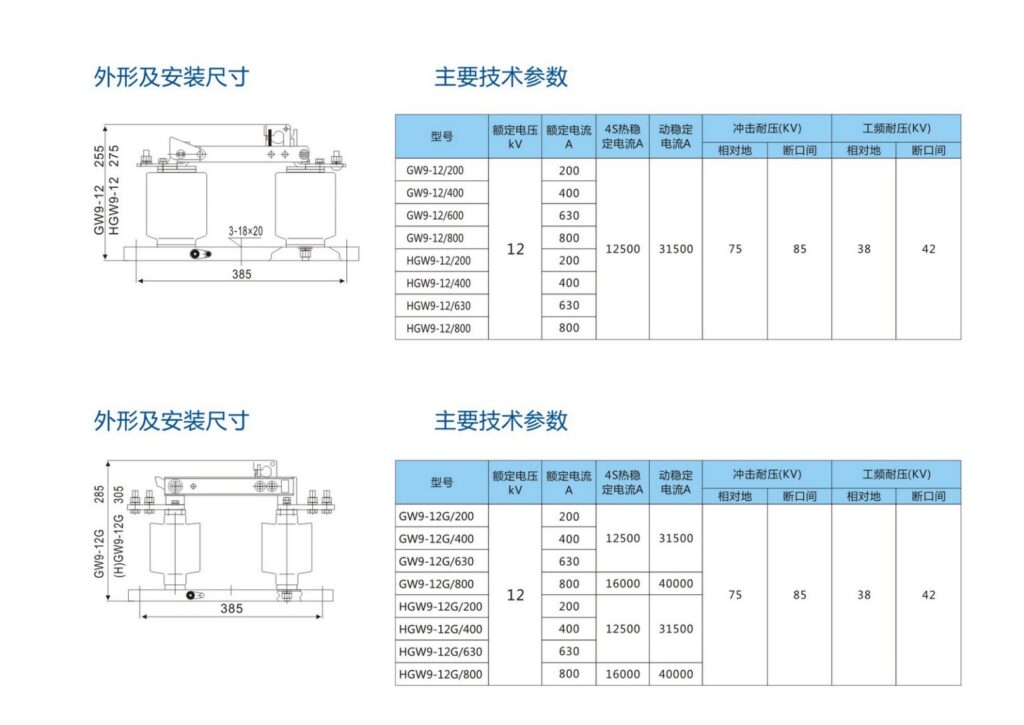

TECHNICAL & PROCUREMENT DATA
The information buyers need before model confirmation.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | GW9-12G Outdoor High-Voltage Disconnect Switch |
|---|---|
| Category | Outdoor Disconnect Switches |
| Representative range / models | GW9-12/200 to GW9-12/800; HGW9 variants |
| Standards / reference basis | Catalogue ratings and project requirements confirmed by KOVYEL before supply |
| Typical applications | Overhead distribution and substation switching; New-build and replacement projects; Utility and industrial power systems |
| Rated voltage | 12 kV |
| Rated current | 200, 400, 630 or 800 A |
| 4-second withstand current | 12.5 or 16 kA |
| Peak withstand current | 31.5 or 40 kA |
| Lightning impulse withstand | 75 kV to earth; 85 kV across the open gap |
| Power-frequency withstand | 38 kV to earth; 42 kV across the open gap |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
TYPICAL APPLICATIONS
Where this product family is typically used.
01
Overhead distribution and substation switching
Compact pole-mounted isolation
02
New-build and replacement projects
200-800 A current range
03
Utility and industrial power systems
GW9 and HGW9 model options
PRODUCT SELECTION SUMMARY
GW9-12G Outdoor High-Voltage Disconnect Switch: key facts for technical buyers.
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
Which models or ratings are covered?
The published KOVYEL range is GW9-12/200 to GW9-12/800; HGW9 variants. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
What information is needed to select GW9-12G Outdoor High-Voltage Disconnect Switch?
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
QUOTATION CHECKLIST
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
01Exact model and quantity per conductor size
02Conductor designation, core count, cross-section and outside diameter
03System voltage, installation arrangement and required mechanical loads
04Connection dimensions and approved assembly drawing
05Required covers, accessories, project standards and test documentation
06Delivery destination, packing and delivery requirements
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
