METAL CABLE CLEAT · CATALOGUE-BACKED RANGE

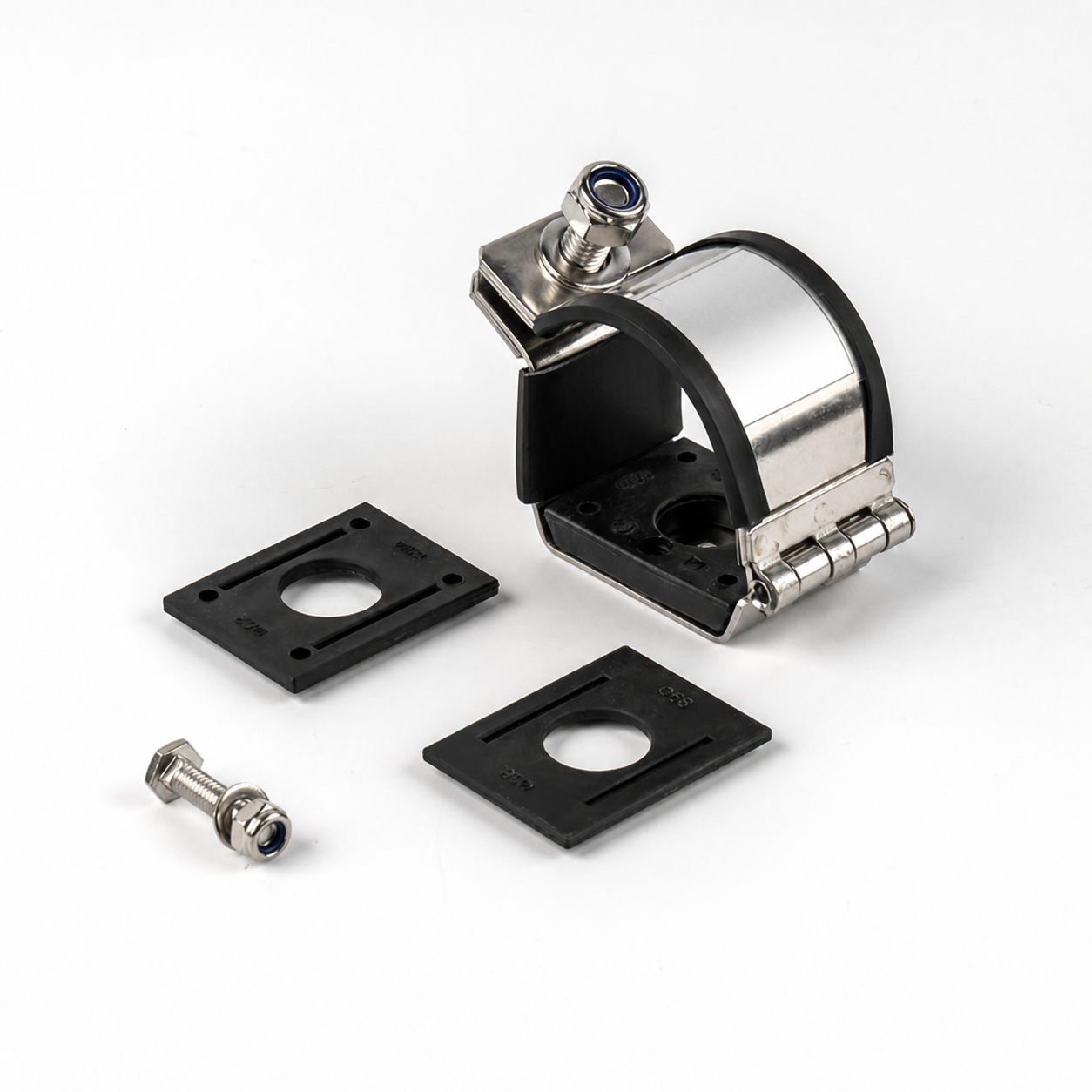

HV Cable Cleats Non-magnetic 316L For Utility Tunnels
HV Cable Cleats Non-magnetic 316L For Utility Tunnels for controlled cable support and restraint in utility, substation and industrial power installations.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
Single and trefoil cable arrangementsProject-matched cable diameter rangesStainless-steel or aluminium construction
APPLICATIONS
Built for real line interfaces.
- Substation cable systems
- Power cable routes
- Cable transition sections
- Utility and industrial installations
KEY FEATURES
What the product family covers.
- Cable range matched to the approved cable schedule
- Mounting arrangement selected for the support structure
- Material selected for electrical and environmental conditions
- Short-circuit restraint verified against project requirements
SELECTION DATA
Send these details for a matched quotation.
- 01Cable outside diameter
- 02Single, trefoil or multicore arrangement
- 03Required short-circuit duty
- 04Cleat spacing and support drawing
- 05Material and fixing size
- 06Required quantity
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
Approved project specification
