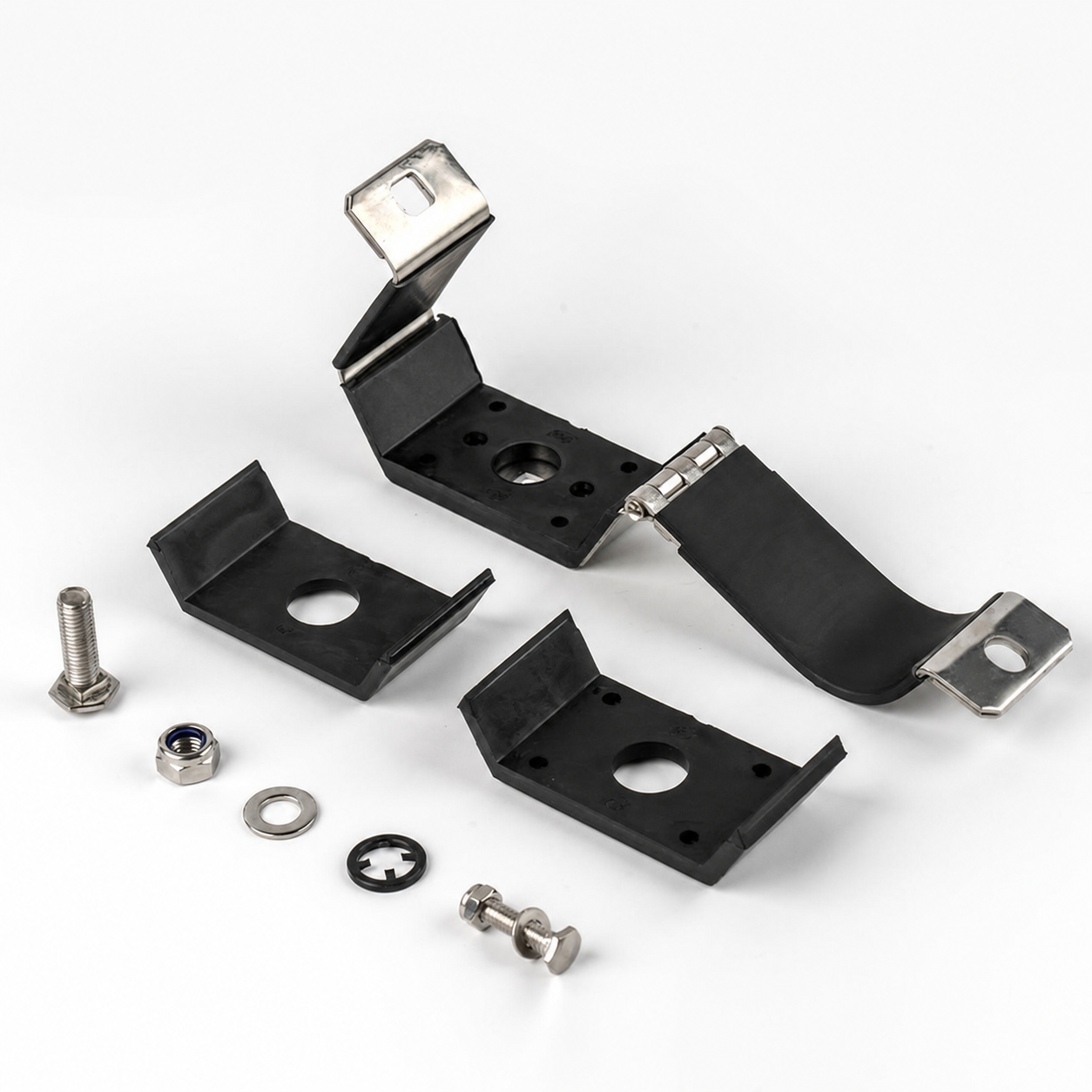

Electric Single Cable Cleat with LSF Pad 130kA peak/50kA RMS
Single Cable Cleats · Drawing-confirmed project supply
Electric Single Cable Cleat with LSF Pad 130kA peak/50kA RMS for controlled cable support and restraint in utility, substation and industrial power installations.
Single Cable Cleats with Low-Smoke Pads: product overview
Electric Single Cable Cleat with LSF Pad 130kA peak/50kA RMS for controlled cable support and restraint in utility, substation and industrial power installations.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Published specifications and model selection
Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.
| Product | Electric Single Cable Cleat with LSF Pad 130kA peak/50kA RMS |
|---|---|
| Category | Single Cable Cleats |
| Representative range / models | Single and trefoil cable arrangements; Project-matched cable diameter ranges; Stainless-steel or aluminium construction |
| Standards / reference basis | Approved project specification |
| Typical applications | Substation cable systems; Power cable routes; Cable transition sections; Utility and industrial installations |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Substation cable systems
Cable range matched to the approved cable schedule
Power cable routes
Mounting arrangement selected for the support structure
Cable transition sections
Material selected for electrical and environmental conditions
Utility and industrial installations
Short-circuit restraint verified against project requirements
From technical approval to a defined supply scope.
Match the exact Single Cable Cleats with Low-Smoke Pads model to the approved cable, equipment and installation schedule before comparing the supply scope and required acceptance documents.
Single Cable Cleats with Low-Smoke Pads: cable layout, restraint and support approval
Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for Single Cable Cleats with Low-Smoke Pads.
| Item | Information for technical approval |
|---|---|
| 01 | Exact offered model and BOQ item for Single Cable Cleats with Low-Smoke Pads, with the controlling drawing revision. |
| 02 | Actual cable outside diameter, cable count and single, trefoil, quad or multicore layout. |
| 03 | Cleat body and liner requirements, mounting-hole dimensions and matched fixing hardware. |
| 04 | Support spacing, specified restraint duty, installation procedure and configuration-specific test evidence. |
Define the BOQ supply scope
Specify the actual cable layout and the exact cleat and fixing arrangement. Separate single, trefoil, quad and multicore configurations in the BOQ. List liners, bolts, support channels and mounting accessories explicitly and clarify whether each offer covers a cleat alone or the complete installed fixing set.
Technical submittals and inspection requirements
Provide cable outside diameters, the support drawing, spacing and project restraint requirements. Request the offered cleat drawing, installation and tightening instructions and applicable acceptance records. Where short-circuit performance or IEC 61914 compliance is required, confirm the tested cable layout, fixing spacing, supporting structure and exact offered configuration; a catalogue title alone does not establish that performance.
Packing, identification and delivery
Identify cleats by model, cable layout, size and BOQ item. Keep liners and matched fasteners identifiable, and reconcile the quantity by support location and separately ordered spare parts.
Buyer questions
Can short-circuit suitability be established from cable diameter alone?
No. The project design must also establish the required duty, cable layout, cleat spacing, fixing arrangement and supporting structure. Review applicable test evidence for the exact proposed configuration.
How should Single Cable Cleats with Low-Smoke Pads be identified in the RFQ?
Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.
