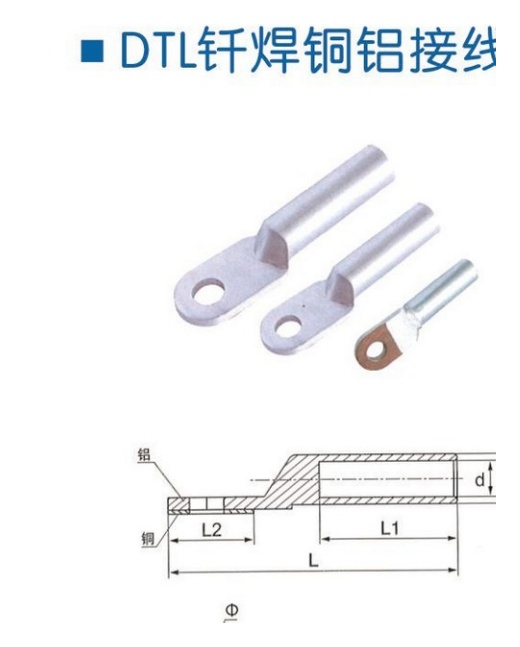

KOVYEL DTL and DTLS bimetallic compression terminal lugs provide copper-aluminium transition terminations for aluminium conductors. Single-hole DTL and double-hole DTLS models cover conductor sections from 10 to 800 mm² depending on configuration.
KOVYEL DTL and DTLS bimetallic compression terminal lugs provide copper-aluminium transition terminations for aluminium conductors. Single-hole DTL and double-hole DTLS models cover conductor sections from 10 to 800 mm² depending on configuration.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | DTL & DTLS Bimetallic Compression Terminal Lugs |
|---|---|
| Category | Cable Lugs & Terminals |
| Representative range / models | DTL-10 to DTL-800; DTLS-10Q to DTLS-500Q |
| Standards / reference basis | DTL and DTLS terminal dimension tables and conductor sections confirmed by KOVYEL |
| Typical applications | Aluminium cable termination to copper busbars; Switchgear and transformer connections; Power cable transition terminations; Single- and double-hole equipment terminals |

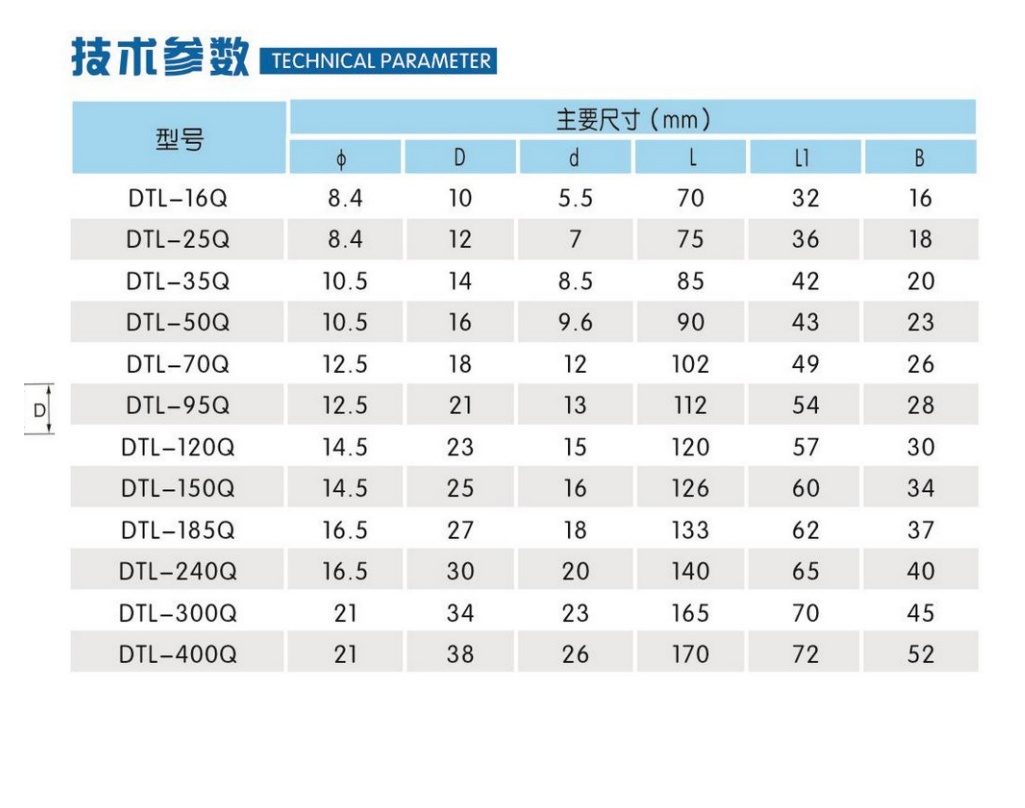

| DTL-Q range | DTL-16Q to DTL-400Q; palm-hole diameter 8.4-21 mm; total length 70-170 mm |
| DTL range | DTL-10 to DTL-800; barrel outside diameter 10-60 mm; length 70-270 mm |
| DTLS range | DTLS-10Q to DTLS-500Q; double-hole palm; total length 115-220 mm |
| Conductor range | 10-800 mm² depending on model |
| Materials | Aluminium barrel with copper contact palm |
| Selection | Confirm conductor section, barrel bore, palm width and equipment-hole pattern |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Brazed copper-aluminium transition
Single-hole and double-hole palms
10-800 mm² conductor coverage
Model-specific barrel, palm and hole dimensions
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL DTL and DTLS bimetallic compression terminal lugs provide copper-aluminium transition terminations for aluminium conductors. Single-hole DTL and double-hole DTLS models cover conductor sections from 10 to 800 mm² depending on configuration. The listed range is DTL-10 to DTL-800; DTLS-10Q to DTLS-500Q.
The published KOVYEL range is DTL-10 to DTL-800; DTLS-10Q to DTLS-500Q. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
