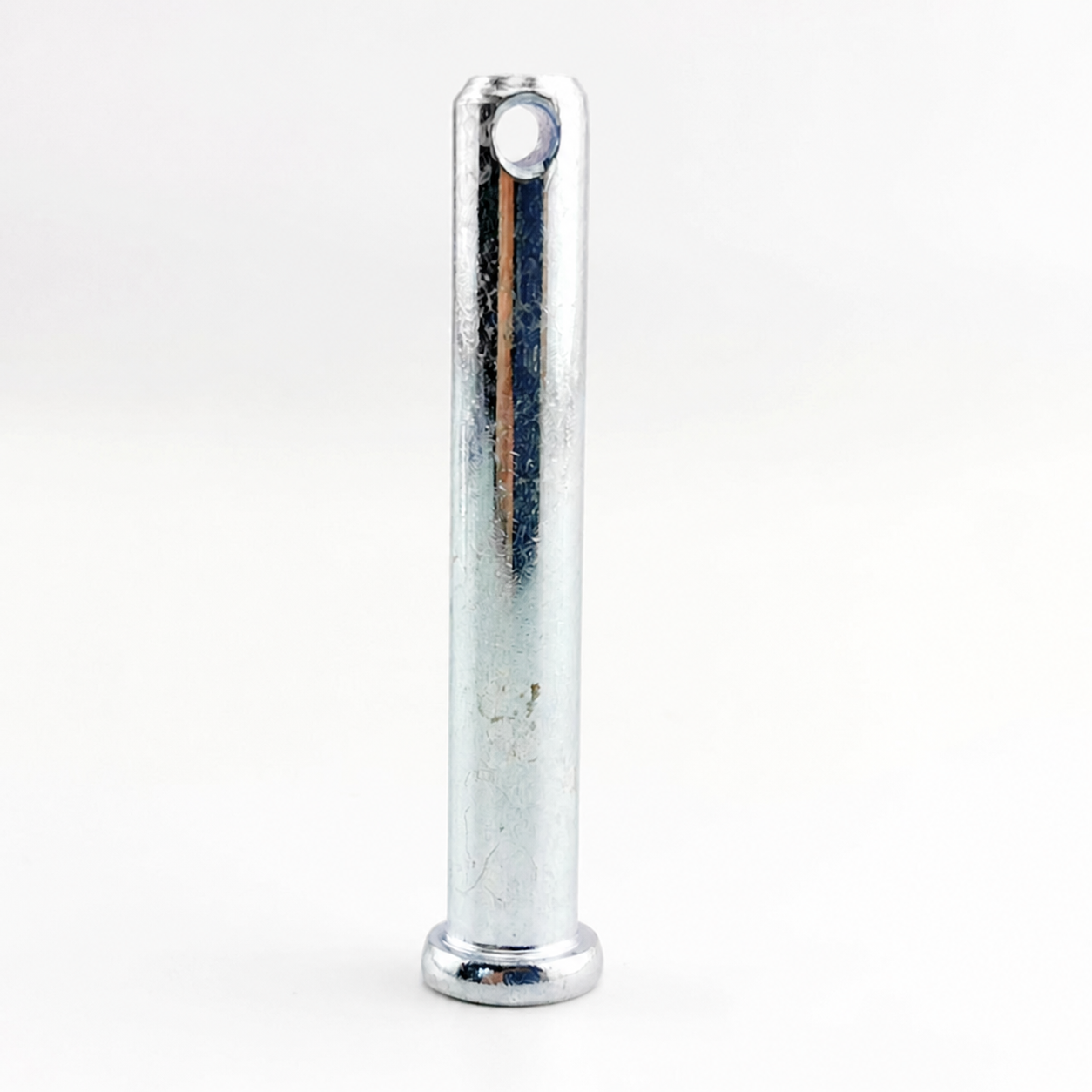

HDG ASME B18.8.1 Clevis Pin with Cotter Pin for pinned connections in pole-line, insulator and structure-hardware assemblies.

Drawing-Matched Project RFQ Supply ASME B18.8.1
Product categoryClevis Pins & Eye Bolts
Representative rangePlain and hot-dip galvanized clevis pins
Technical basisASME B18.8.1
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

HDG ASME B18.8.1 Clevis Pin with Cotter Pin: product overview

HDG ASME B18.8.1 Clevis Pin with Cotter Pin for pinned connections in pole-line, insulator and structure-hardware assemblies.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductHDG ASME B18.8.1 Clevis Pin with Cotter Pin
CategoryClevis Pins & Eye Bolts
Representative range / modelsPlain and hot-dip galvanized clevis pins; Cotter-pin retained arrangements; Project-matched diameter and grip length
Standards / reference basisASME B18.8.1; Approved project specification or drawing
Typical applicationsInsulator and line-hardware assemblies; Pole and crossarm connections; Guying hardware; Tower and structure fittings
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

Insulator and line-hardware assemblies

Pin diameter and grip length matched to the assembly

02

Pole and crossarm connections

Retaining method confirmed from the drawing

03

Guying hardware

Material and finish selected for the service environment

04

Tower and structure fittings

Mechanical duty reviewed before supply

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

Confirm the exact HDG ASME B18.8.1 Clevis Pin with Cotter Pin configuration against the approved project drawing, required duty and matched component schedule before quotation.

HDG ASME B18.8.1 Clevis Pin with Cotter Pin: pin bearing length and retention approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for HDG ASME B18.8.1 Clevis Pin with Cotter Pin.

ItemInformation for technical approval
01Exact model and BOQ reference for HDG ASME B18.8.1 Clevis Pin with Cotter Pin, with the controlling drawing revision.
02Actual diameter tolerance, bearing length, head and retention-hole geometry.
03Mating-hole clearances, included cotter or locking parts and component quantities.
04Specified material, finish, joint duty and applicable dimensional acceptance records.

Define the BOQ supply scope

Identify the pin on the approved joint drawing and specify its bearing length, head and retention geometry. List cotter pins, washers and other locking parts explicitly. Confirm the offered pin with both mating joint members before approving a replacement.

Technical submittals and inspection requirements

Request the exact offered-model drawing and identify required coupling, material, finish and mechanical acceptance records. Confirm the model reference and both mating interfaces against the approved string drawing before accepting a substitution.

Packing, identification and delivery

Mark fittings and loose locking parts by model and BOQ reference. Reconcile the component quantities with the number of suspension or tension strings rather than relying on an unspecified set quantity.

Buyer questions

Is the pin diameter enough to establish interchangeability?

Also check bearing length, head and retention geometry, mating-hole clearances, material, finish and the required joint duty on the approved assembly drawing.

How should HDG ASME B18.8.1 Clevis Pin with Cotter Pin be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.
