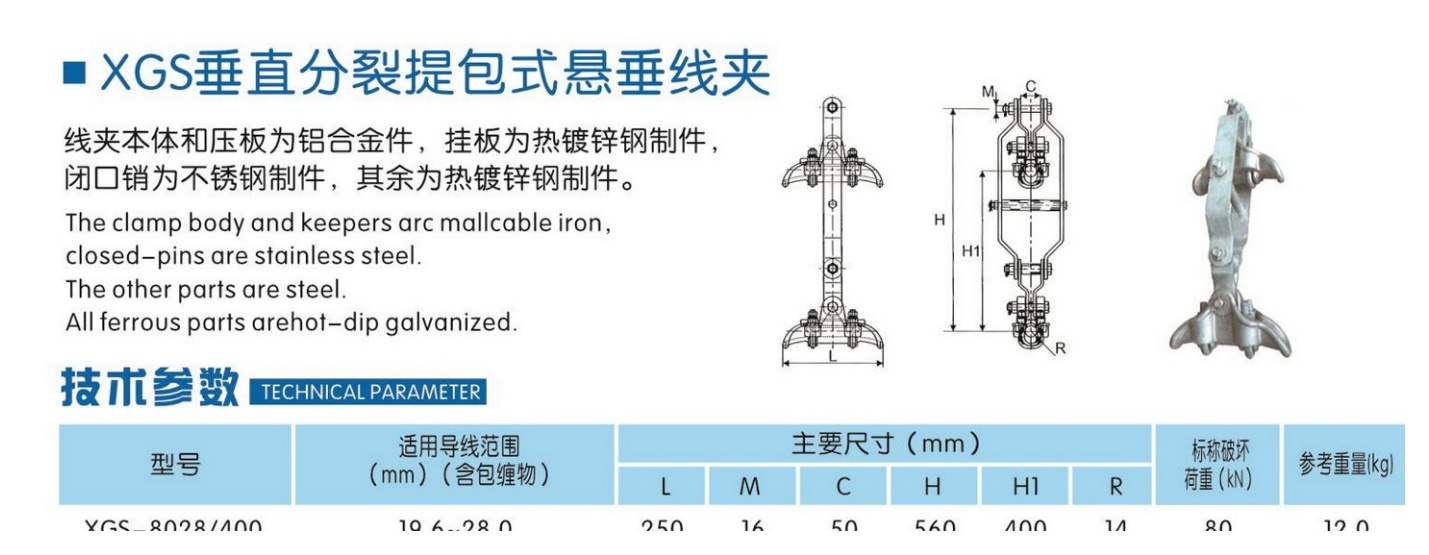

KOVYEL XGS vertical split twin-bundle suspension clamps support two conductors at 400, 500 or 600 mm spacing. The range covers conductor diameters from 19.6 to 54.0 mm.
KOVYEL XGS vertical split twin-bundle suspension clamps support two conductors at 400, 500 or 600 mm spacing. The range covers conductor diameters from 19.6 to 54.0 mm.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.

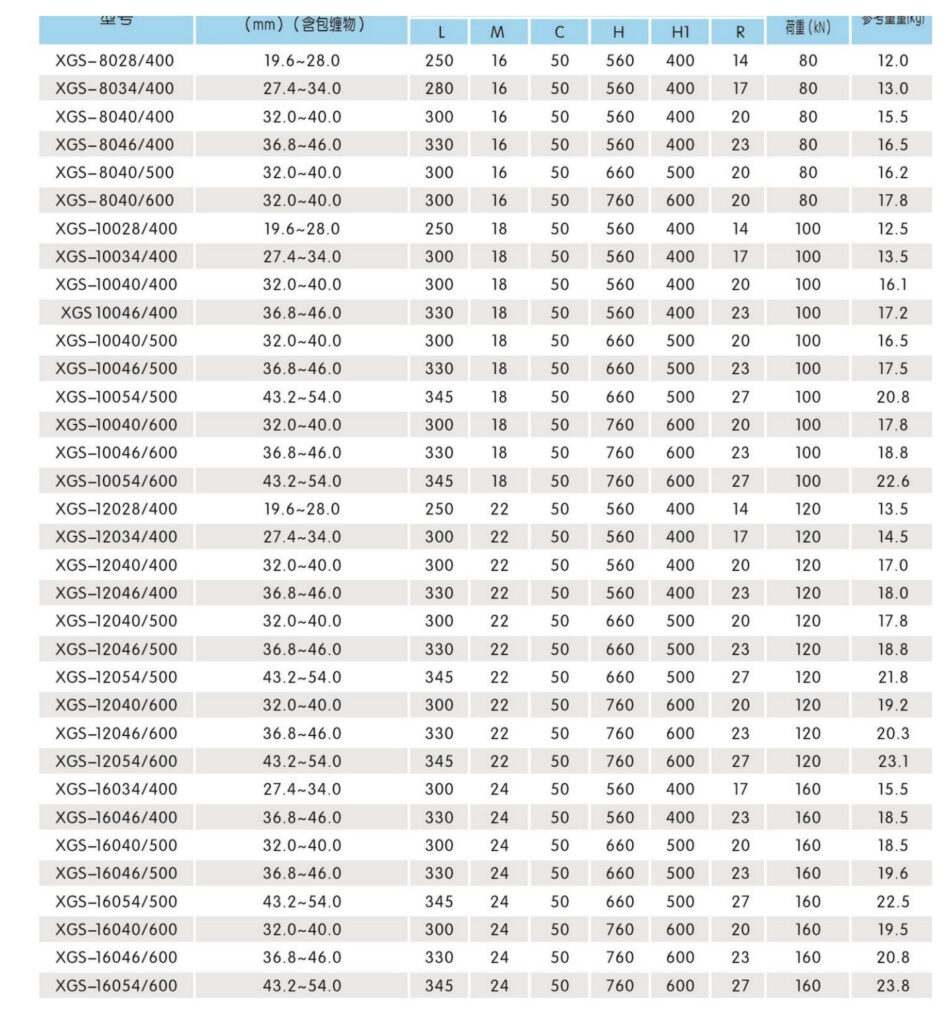

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | XGS Twin-Bundle Suspension Clamps |
|---|---|
| Category | Suspension Clamps |
| Representative range / models | XGS-8028/400 to XGS-16054/600 |
| Standards / reference basis | Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly |
| Typical applications | Vertical twin-bundle conductor suspension; 400-600 mm bundle-spacing assemblies; High-voltage transmission lines |
| Conductor diameter | 19.6-54.0 mm depending on model |
| Bundle spacing H1 | 400, 500 or 600 mm |
| Rated failure load | 80, 100, 120 or 160 kN |
| Body length L | 250-345 mm |
| Assembly height H | 560, 660 or 760 mm |
| Material | Malleable-iron body and keepers with galvanized steel hardware |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Twin-conductor vertical arrangement
80-160 kN rated-load options
19.6-54.0 mm conductor coverage
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL XGS vertical split twin-bundle suspension clamps support two conductors at 400, 500 or 600 mm spacing. The range covers conductor diameters from 19.6 to 54.0 mm. The listed range is XGS-8028/400 to XGS-16054/600.
The published KOVYEL range is XGS-8028/400 to XGS-16054/600. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
