KOVYEL SL, SLG, HSLG, SLGQ and ST equipment clamps connect 35-240 mm² overhead conductors to equipment terminals. Aluminium, copper-aluminium transition and copper configurations are available in straight, 30-degree and selected 90-degree arrangements.
KOVYEL SL, SLG, HSLG, SLGQ and ST equipment clamps connect 35-240 mm² overhead conductors to equipment terminals. Aluminium, copper-aluminium transition and copper configurations are available in straight, 30-degree and selected 90-degree arrangements.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

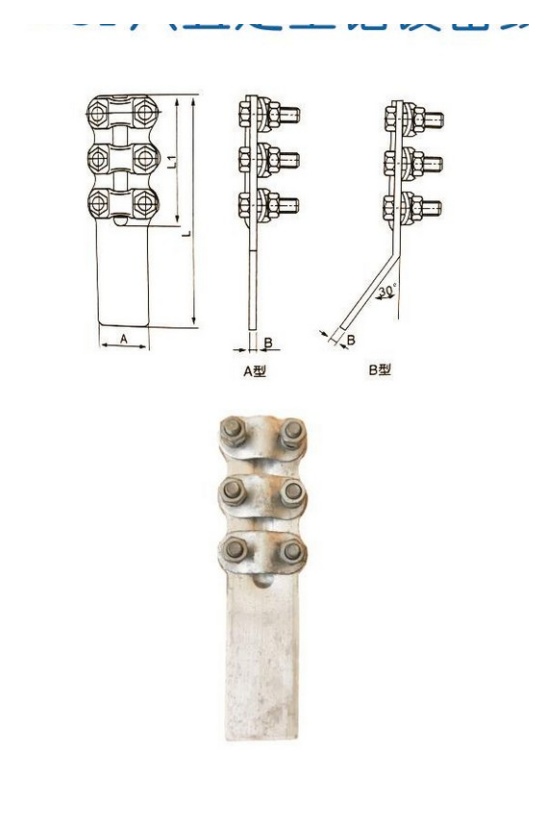

Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | SL, SLG, HSLG, SLGQ & ST Equipment Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | SL-1A to SL-4B; SLG-1A to SLG-4B; HSLG-1A to HSLG-4B; SLGQ-1 to SLGQ-4; ST-1A to ST-8A |
| Standards / reference basis | SL, SLG, HSLG, SLGQ and ST model tables and project conductor data confirmed by KOVYEL |
| Typical applications | Substation equipment terminal connections; Transformer and switchgear conductor interfaces; Copper-aluminium transition connections; Straight and angled equipment connections |

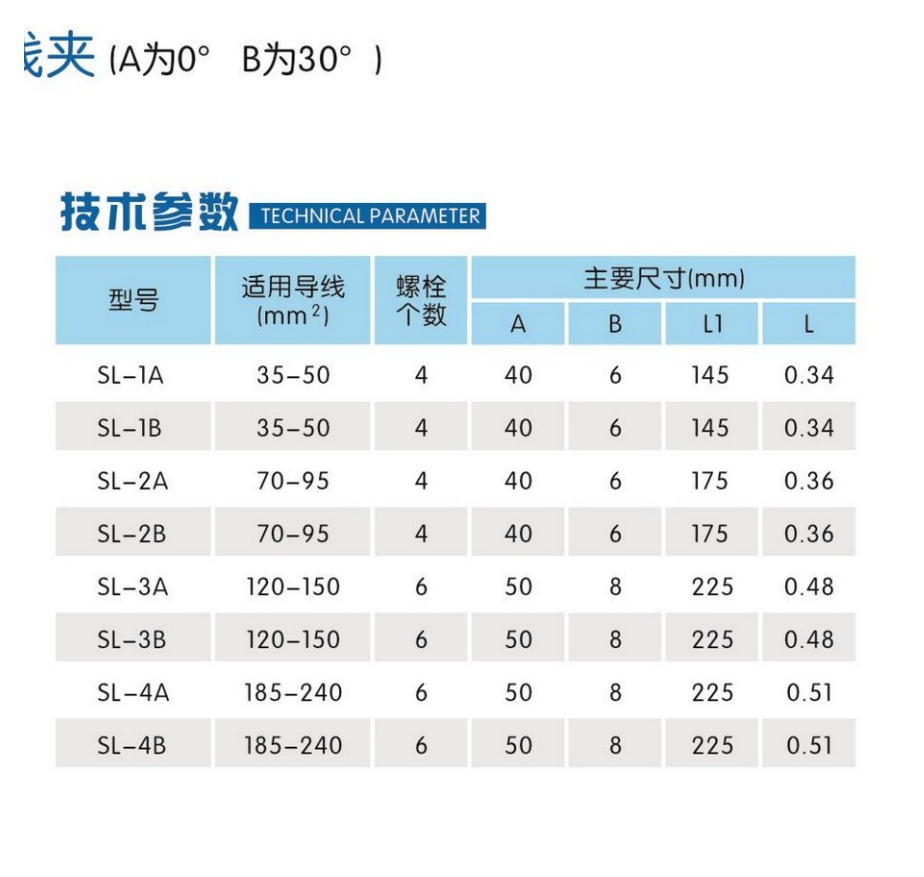

| SL / SLG / HSLG range | 35-50, 70-95, 120-150 and 185-240 mm²; four or six bolts; plate width 40 or 50 mm |
| SLGQ range | SLGQ-1A/1B/1C through SLGQ-4A/4B/4C; 35-240 mm²; lengths 65-125 mm |
| ST eight-five form | ST-1A to ST-4A; 35-240 mm²; terminal lengths 145-225 mm |
| ST seven-four form | ST-1A to ST-8A; one-, two- or four-hole terminal forms; 35-240 mm² |
| Material options | Aluminium, copper-aluminium transition and copper equipment-clamp configurations |
| Selection | Confirm conductor section, terminal angle, hole pattern and contact material |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
35-240 mm² conductor coverage
Straight, 30-degree and selected 90-degree forms
Four- or six-bolt terminal plates by size
Copper contact surfaces can be specified for transition service
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL SL, SLG, HSLG, SLGQ and ST equipment clamps connect 35-240 mm² overhead conductors to equipment terminals. Aluminium, copper-aluminium transition and copper configurations are available in straight, 30-degree and selected 90-degree arrangements. The listed range is SL-1A to SL-4B; SLG-1A to SLG-4B; HSLG-1A to HSLG-4B; SLGQ-1 to SLGQ-4; ST-1A to ST-8A.
The published KOVYEL range is SL-1A to SL-4B; SLG-1A to SLG-4B; HSLG-1A to HSLG-4B; SLGQ-1 to SLGQ-4; ST-1A to ST-8A. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
