HYDRAULIC COMPRESSION TENSION CLAMP · CATALOGUE-BACKED RANGE

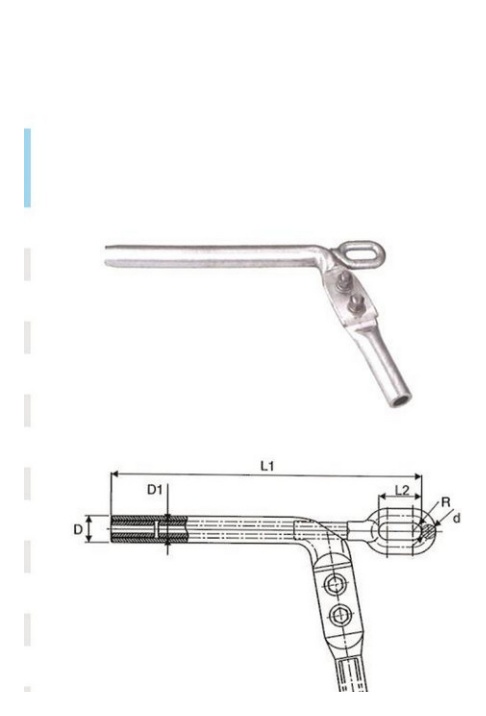

NY Series Hydraulic Compression Tension Clamps
NY series compression tension clamps transfer full conductor tension at terminal and strain structures while providing a coordinated jumper connection for AAC, AAAC and ACSR conductors.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
NY aluminium-tube compression bodiesSteel-anchor assemblies for ACSRAAC and AAAC conductor variantsProject-matched jumper terminals
APPLICATIONS
Built for real line interfaces.
- Transmission-line strain towers
- Distribution dead-end structures
- Substation gantry terminations
- Overhead conductor transitions
KEY FEATURES
What the product family covers.
- Full-tension compression connection
- Separate steel-core and aluminium compression zones where required
- Conductor-matched barrel dimensions
- Coordinated anchor and jumper hardware
SELECTION DATA
Send these details for a matched quotation.
- 01Conductor type and code
- 02Conductor diameter and section
- 03Rated tensile strength
- 04Structure and string arrangement
- 05Compression die schedule
- 06Jumper terminal requirement
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
IEC 61284 where specifiedApproved utility drawingCatalogue model data
