KOVYEL NUT adjustable and NU fixed tension clamps anchor galvanized steel strand in guy and line assemblies. Four sizes cover strand diameters from 6.6 to 16.0 mm.
KOVYEL NUT adjustable and NU fixed tension clamps anchor galvanized steel strand in guy and line assemblies. Four sizes cover strand diameters from 6.6 to 16.0 mm.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.

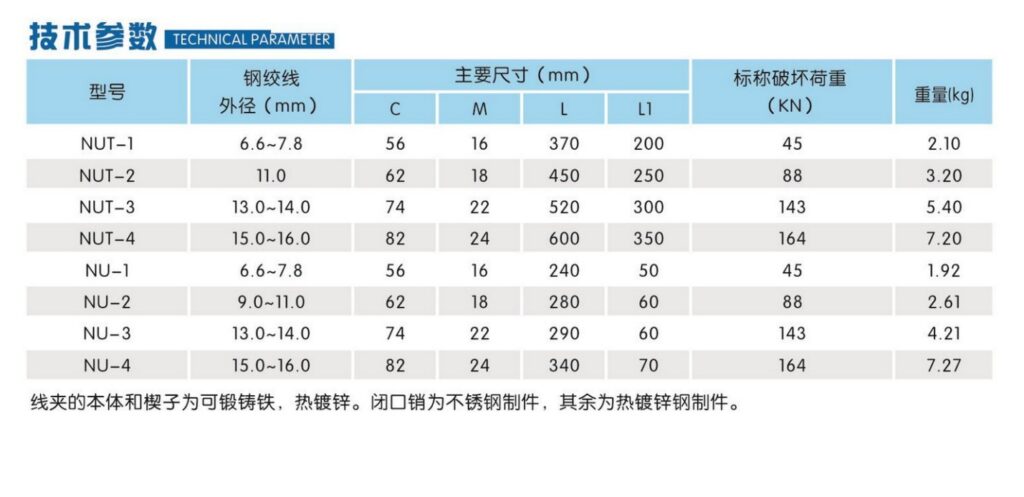

| Product | NUT & NU Adjustable Tension Clamps |
|---|---|
| Category | Tension & Dead-End Clamps |
| Representative range / models | NUT-1 to NUT-4; NU-1 to NU-4 |
| Standards / reference basis | Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly |
| Typical applications | Guy-wire tension adjustment; Galvanized steel-strand anchoring; Overhead line and pole hardware assemblies |
| Strand diameter | 6.6-16.0 mm depending on model |
| Rated failure load | 45, 88, 143 or 164 kN |
| NUT overall length | 370-600 mm |
| NU overall length | 240-340 mm |
| Adjustment travel | NUT L1 200-350 mm; NU L1 50-70 mm |
| Material | Malleable-iron body and wedge with galvanized steel hardware |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

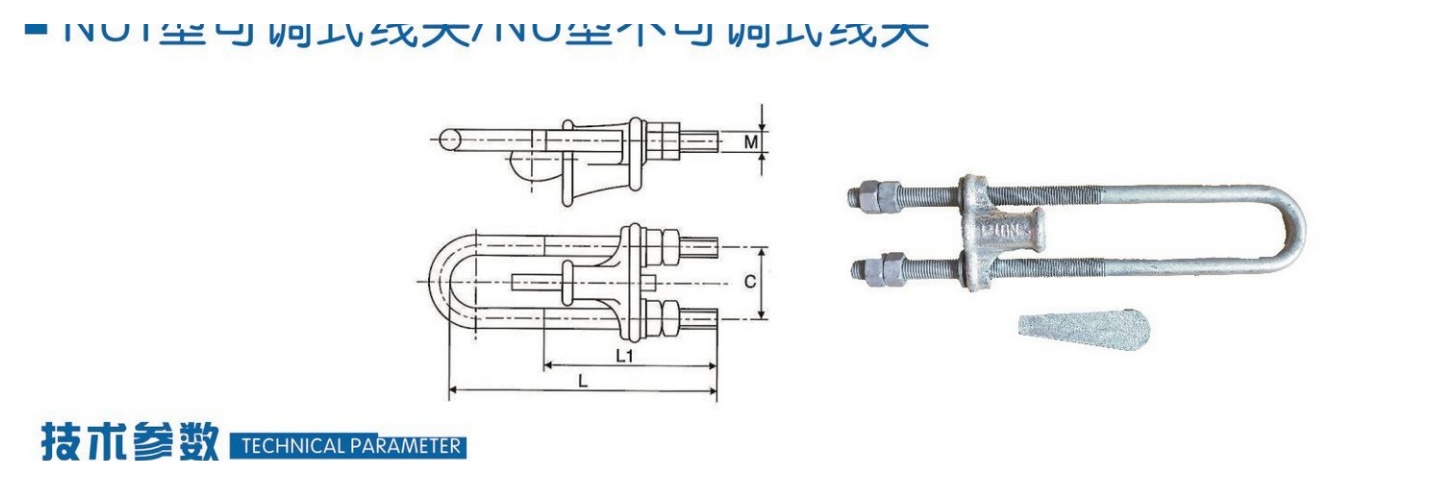

Adjustable NUT and fixed NU variants
45-164 kN rated-load range
6.6-16.0 mm strand coverage
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL NUT adjustable and NU fixed tension clamps anchor galvanized steel strand in guy and line assemblies. Four sizes cover strand diameters from 6.6 to 16.0 mm. The listed range is NUT-1 to NUT-4; NU-1 to NU-4.
The published KOVYEL range is NUT-1 to NUT-4; NU-1 to NU-4. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
