KOVYEL NLY adjustable tension clamps provide long-stroke adjustment for overhead line guy and tension assemblies. The series offers rated failure loads from 65.1 to 367.0 kN.
KOVYEL NLY adjustable tension clamps provide long-stroke adjustment for overhead line guy and tension assemblies. The series offers rated failure loads from 65.1 to 367.0 kN.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | NLY Adjustable Tension Clamps |
|---|---|
| Category | Tension & Dead-End Clamps |

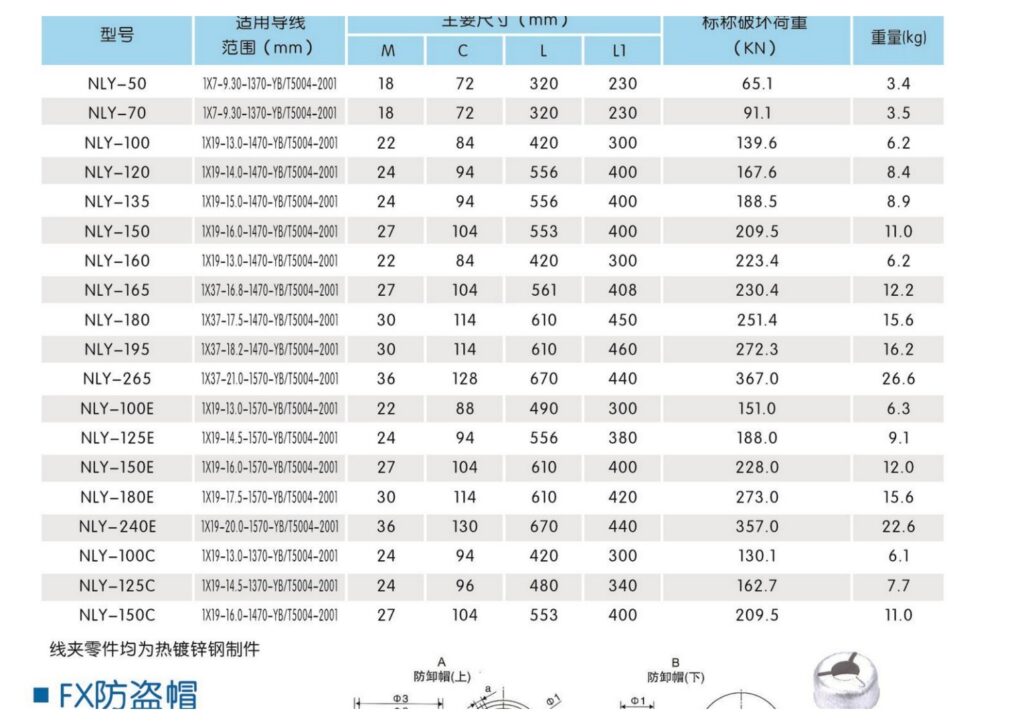

| Representative range / models | NLY-50 to NLY-265 plus E/C conductor variants |
| Standards / reference basis | Model, dimension, conductor range and mechanical-load data confirmed by KOVYEL for the selected assembly |
| Typical applications | Guy-wire and tension-assembly adjustment; Overhead line construction; Heavy-duty tower hardware connections |
| Rated failure load | 65.1-367.0 kN depending on model |

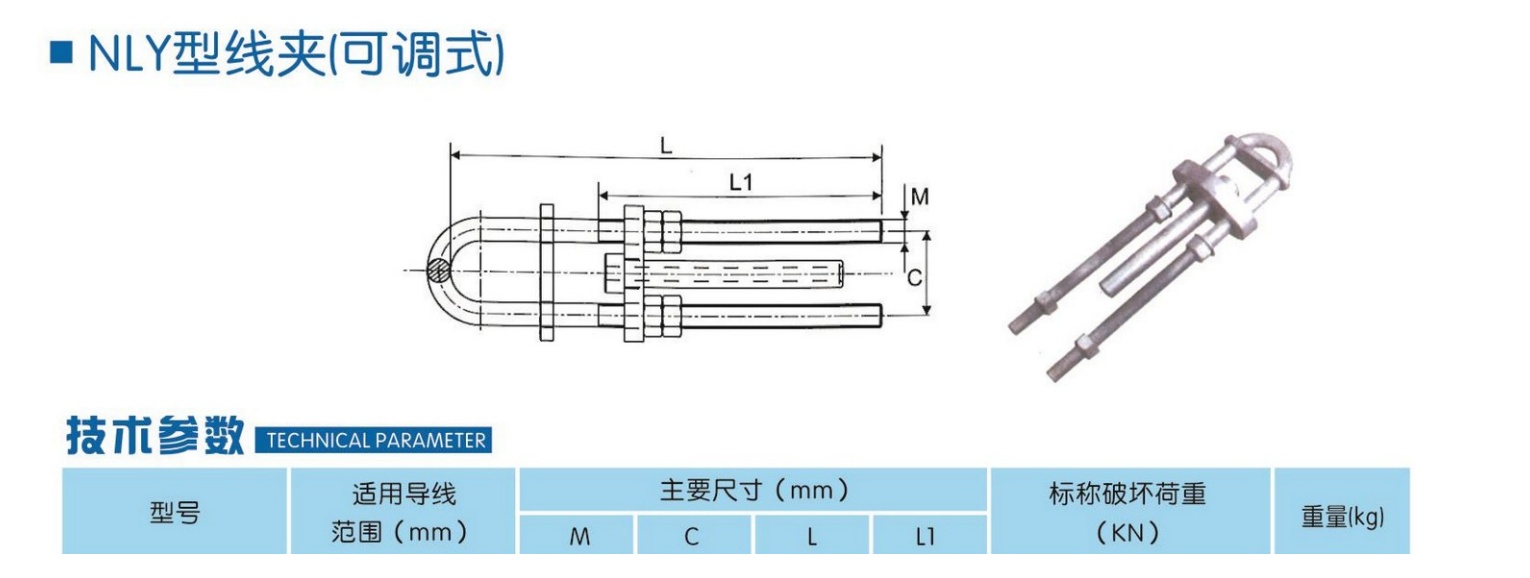

| Overall length L | 320-670 mm |
| Adjustment length L1 | 230-450 mm |
| Thread size M | M18-M36 depending on model |
| Reference mass | 3.4-26.6 kg |
| Material | Hot-dip galvanized steel components |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Long-stroke adjustable body
65.1-367.0 kN rated-load range
Multiple thread and length configurations
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL NLY adjustable tension clamps provide long-stroke adjustment for overhead line guy and tension assemblies. The series offers rated failure loads from 65.1 to 367.0 kN. The listed range is NLY-50 to NLY-265 plus E/C conductor variants.
The published KOVYEL range is NLY-50 to NLY-265 plus E/C conductor variants. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
