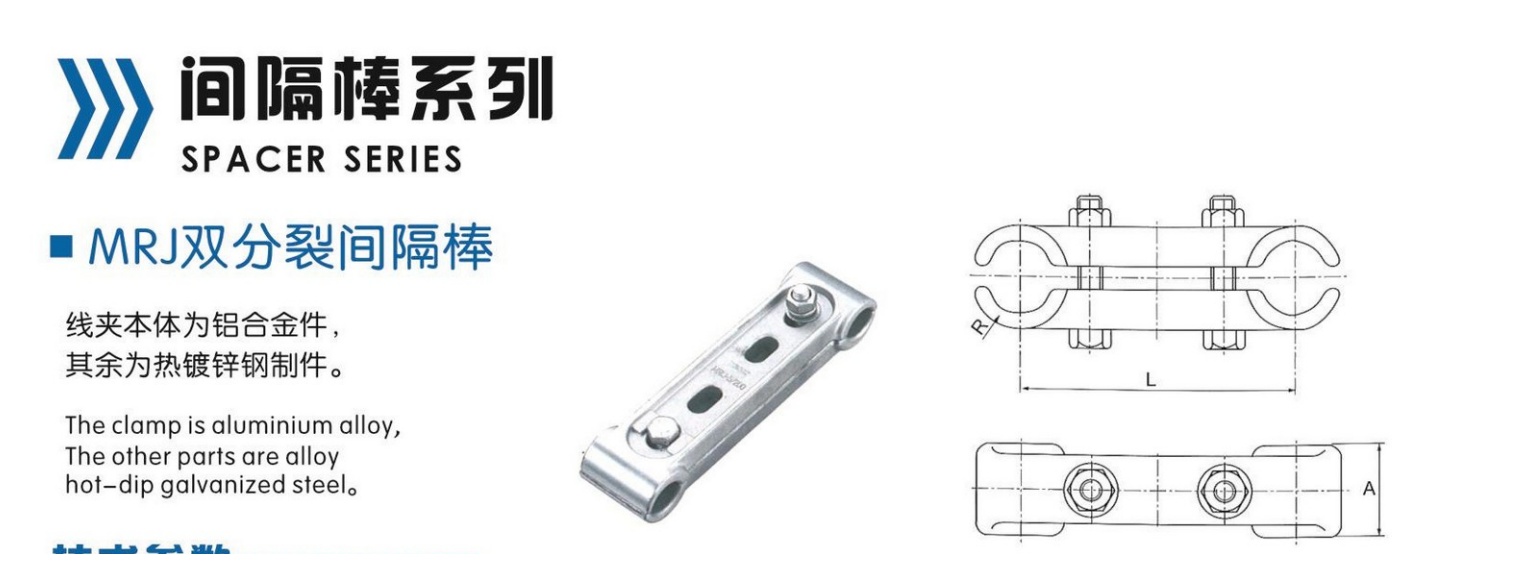

MRJ Rigid Bundle Spacers
MRJ rigid spacers maintain the designed separation of twin bundled conductors in jumper and short-span arrangements where a fixed geometry is required.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.

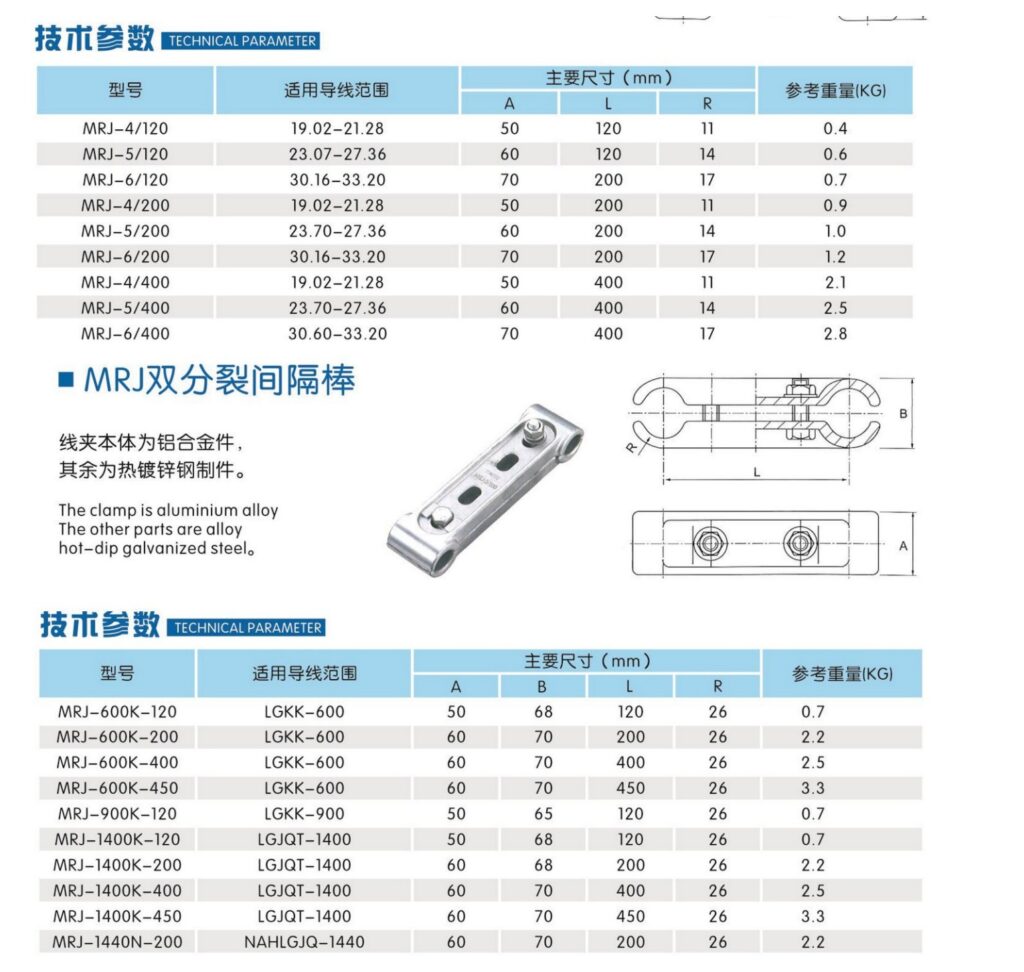

MRJ twin-bundle spacer barsProject-matched conductor clampsMultiple bundle centre distancesBolted and hinged clamp options
APPLICATIONS
Built for real line interfaces.
- Twin-bundle overhead conductors
- Short-span bundled bus connections
- Transmission-line jumpers
- Substation gantry connections
KEY FEATURES
What the product family covers.
- Fixed bundle spacing
- Lightweight aluminium construction
- Conductor-matched clamping grooves
- Simple inspection and replacement
SELECTION DATA
Send these details for a matched quotation.
- 01Conductor model and diameter
- 02Bundle quantity
- 03Bundle centre spacing
- 04Span or jumper location
- 05Electrical clearance requirement
- 06Approved bundle drawing
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
IEC 61854 where applicableApproved bundle configurationCatalogue model data
