KOVYEL JY, JYD, JTB and JT compression splice connectors join steel-reinforced aluminium conductors in hydraulic or explosive compression systems. Aluminium outer sleeves and hot-dip galvanized steel inner sleeves are selected to the conductor designation and required grip strength.
KOVYEL JY, JYD, JTB and JT compression splice connectors join steel-reinforced aluminium conductors in hydraulic or explosive compression systems. Aluminium outer sleeves and hot-dip galvanized steel inner sleeves are selected to the conductor designation and required grip strength.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JY, JYD, JTB & JT Compression Splice Connectors |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | JY and JYD for LGJ conductors through 800/100; JTB and JT compression sleeves; JY-BG and JYD-BG aluminium-clad steel-core variants |
| Standards / reference basis | JY, JYD, JTB, JT and BG-series model tables and conductor schedules confirmed by KOVYEL |
| Typical applications | ACSR conductor splicing; Hydraulic full-tension joints; Explosive-compression conductor joints; Aluminium-clad steel-core conductor splices |

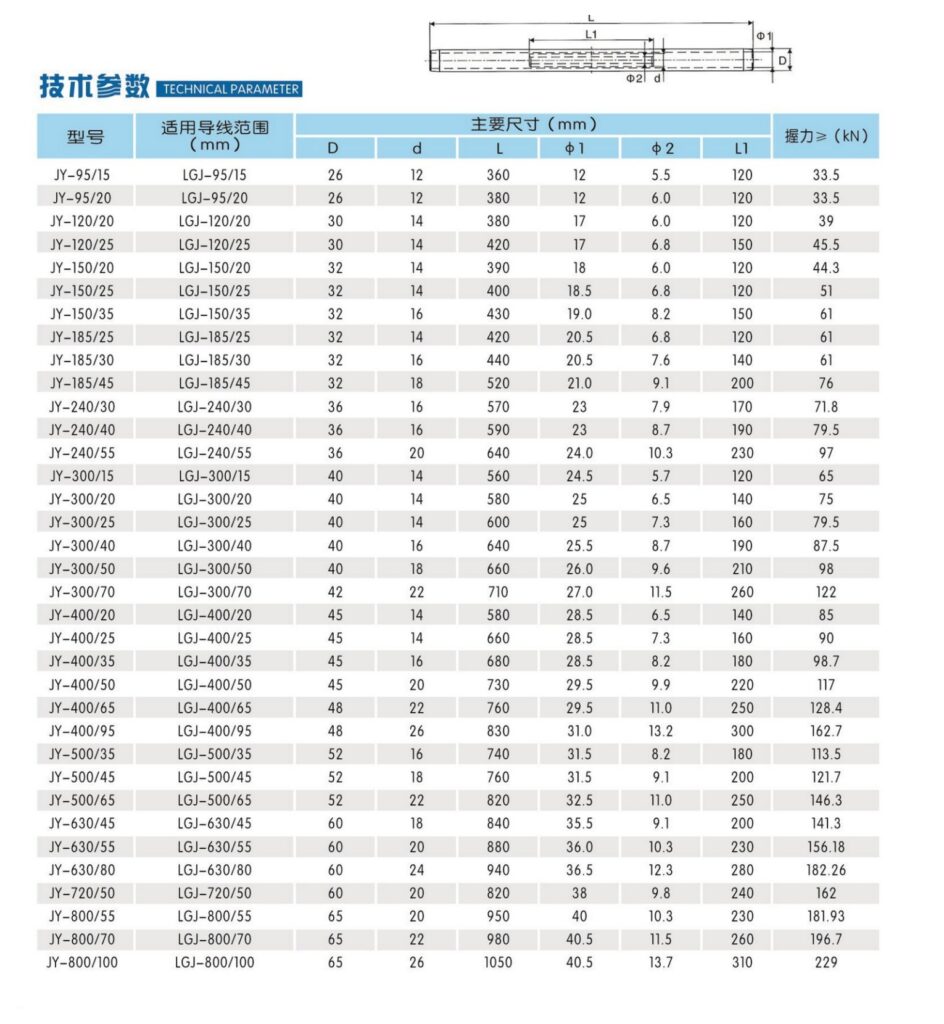

| JY hydraulic range | LGJ-95/15 through LGJ-800/100; grip strength approximately 33.5-229 kN by model |
| JYD hydraulic lap range | LGJ-95/15 through LGJ-800/70; drawing form selected by model |
| JTB explosive range | JTB-25/4 through JTB-400/95 for ACSR conductors |
| JT compression range | JT-10/2 through JT-240/40 |
| BG variants | JY-BG and JYD-BG for aluminium-clad steel-core aluminium conductors |
| Selection | Confirm exact conductor designation, joint method, required grip strength and compression tooling |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Aluminium outer compression sleeve
Hot-dip galvanized steel inner sleeve
Hydraulic and explosive compression options
Grip-strength values matched to conductor designation
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL JY, JYD, JTB and JT compression splice connectors join steel-reinforced aluminium conductors in hydraulic or explosive compression systems. Aluminium outer sleeves and hot-dip galvanized steel inner sleeves are selected to the conductor designation and required grip strength. The listed range is JY and JYD for LGJ conductors through 800/100; JTB and JT compression sleeves; JY-BG and JYD-BG aluminium-clad stee…
The published KOVYEL range is JY and JYD for LGJ conductors through 800/100; JTB and JT compression sleeves; JY-BG and JYD-BG aluminium-clad steel-core variants. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
