KOVYEL JXL and JXLD C-type wedge clamps provide non-load-bearing or T-connections for distribution conductors. JXL-1 to JXL-5 and JXLD-1 to JXLD-5 cover conductor diameters below 10 mm to 26 mm and conductor sections up to 400 mm², depending on conductor type.
KOVYEL JXL and JXLD C-type wedge clamps provide non-load-bearing or T-connections for distribution conductors. JXL-1 to JXL-5 and JXLD-1 to JXLD-5 cover conductor diameters below 10 mm to 26 mm and conductor sections up to 400 mm², depending on conductor type.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JXL & JXLD C-Type Wedge Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | JXL-1 to JXL-5 and JXLD-1 to JXLD-5; conductor diameter below 10-26 mm |
| Standards / reference basis | JXL/JXLD model table and project conductor requirements confirmed by KOVYEL |
| Typical applications | Distribution conductor T-connections; Non-load-bearing conductor connections; Temporary grounding and test connections for JXLD; Replacement of selected parallel-groove clamp arrangements |

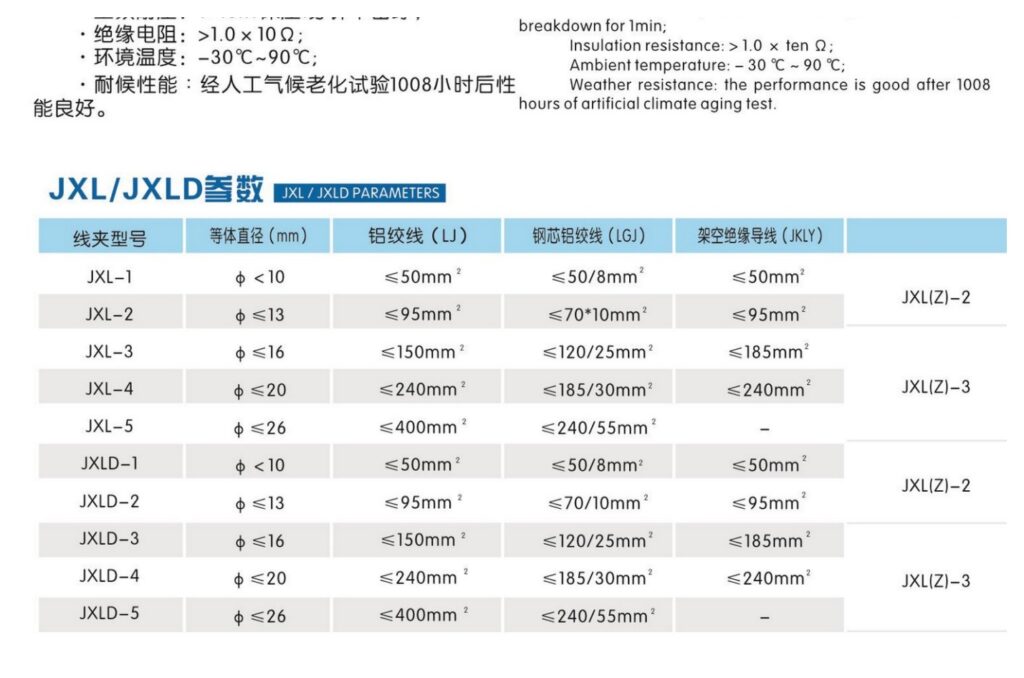

| JXL-1 / JXLD-1 | Diameter below 10 mm; LJ up to 50 mm²; LGJ up to 50/8 mm²; JKLY up to 50 mm²; cover JXL(Z)-2 |
| JXL-2 / JXLD-2 | Diameter up to 13 mm; LJ up to 95 mm²; LGJ up to 70/10 mm²; JKLY up to 95 mm²; cover JXL(Z)-2 |
| JXL-3 / JXLD-3 | Diameter up to 16 mm; LJ up to 150 mm²; LGJ up to 120/25 mm²; JKLY up to 185 mm²; cover JXL(Z)-3 |
| JXL-4 / JXLD-4 | Diameter up to 20 mm; LJ up to 240 mm²; LGJ up to 185/30 mm²; JKLY up to 240 mm²; cover JXL(Z)-3 |
| JXL-5 / JXLD-5 | Diameter up to 26 mm; LJ up to 400 mm²; LGJ up to 240/55 mm² |
| Insulating cover | Power-frequency withstand voltage at least 18 kV for 1 minute; ambient range -30 °C to 90 °C |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

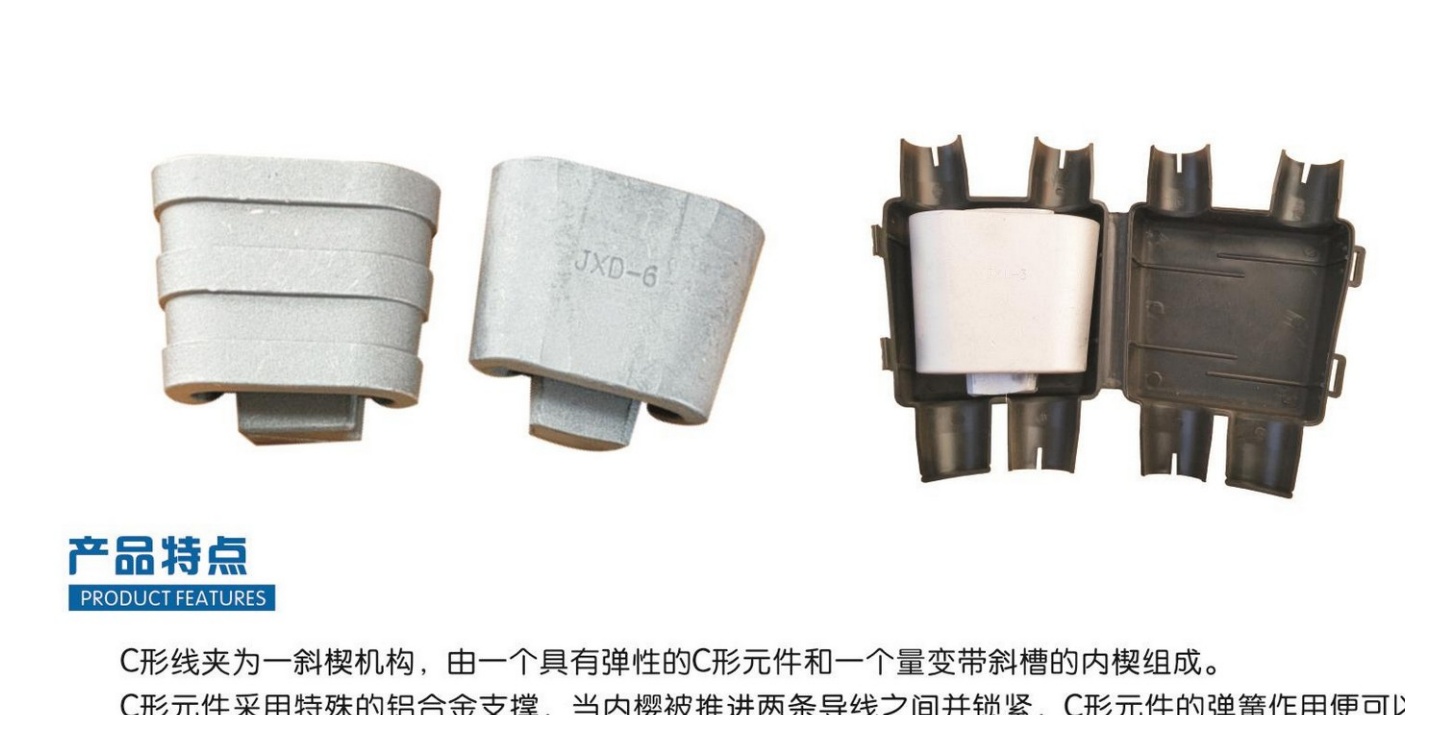

Elastic C-body with driven inner wedge
Non-magnetic aluminium construction
Optional silicone-rubber insulating cover
Select by diameter and conductor designation
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL JXL and JXLD C-type wedge clamps provide non-load-bearing or T-connections for distribution conductors. JXL-1 to JXL-5 and JXLD-1 to JXLD-5 cover conductor diameters below 10 mm to 26 mm and conductor sections up to 400 mm², depending on conductor type. The listed range is JXL-1 to JXL-5 and JXLD-1 to JXLD-5; conductor diameter below 10-26 mm.
The published KOVYEL range is JXL-1 to JXL-5 and JXLD-1 to JXLD-5; conductor diameter below 10-26 mm. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
