KOVYEL supplies JNS strain clamps for securing four-core aerial bunched cables at line terminals and the ends of tension sections on systems up to 1 kV. The iron-shell models listed here cover 4 × 10 to 4 × 120 mm² cable configurations. Select the clamp by core count, conductor cross-section and the A/B/C dimensions before confirming the assembly.
KOVYEL supplies JNS strain clamps for securing four-core aerial bunched cables at line terminals and the ends of tension sections on systems up to 1 kV. The iron-shell models listed here cover 4 × 10 to 4 × 120 mm² cable configurations. Select the clamp by core count, conductor cross-section and the A/B/C dimensions before confirming the assembly.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JNS Four-Core Bunched Cable Strain Clamps |
|---|---|
| Category | Tension & Dead-End Clamps |
| Representative range / models | JNS-1A-1, JNS-1A-2 and JNS-2A; four-core iron-shell configuration |
| Standards / reference basis | JNS model specifications; project requirements confirmed by KOVYEL |
| Typical applications | Four-core low-voltage aerial bunched cable terminations; Cable anchoring at the ends of tension sections; Low-voltage distribution service connections |
| Configuration | Four-core, iron-shell models only |
| Application voltage | Up to and including 1 kV |
| JNS-1A-1 | Cable configuration 4 × 10 to 4 × 16 mm²; A 200 mm; B 78 mm; C 45 mm |
| JNS-1A-2 | Cable configuration 4 × 16 to 4 × 50 mm²; A 245 mm; B 90 mm; C 50 mm |
| JNS-2A | Cable configuration 4 × 50 to 4 × 120 mm²; A 300 mm; B 105 mm; C 72 mm |

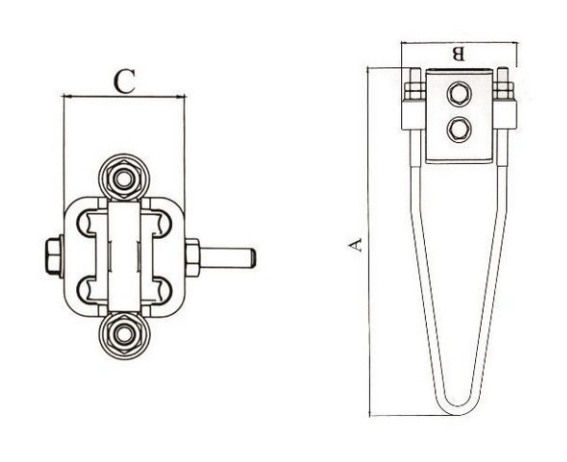

| Dimension symbols | A, B and C correspond to the dimensional drawing; all dimensions are in mm. |
| Selection boundary | Two-core and aluminium-shell versions require separate model confirmation; the values above must not be transferred to those configurations. |
| Mechanical rating | Required holding load and acceptance tests to be confirmed in the project specification; no fixed load rating is assigned here. |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Four-core clamping configuration with an attachment loop.
Iron-shell models are specified separately from aluminium-shell and two-core versions.
The 4 × value denotes four conductors of the stated individual cross-section.
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL supplies JNS strain clamps for securing four-core aerial bunched cables at line terminals and the ends of tension sections on systems up to 1 kV. The iron-shell models listed here cover 4 × 10 to 4 × 120 mm² cable configurations. Select the clamp by core count, conductor cross-section and the A/B/C dimensions before confirming the… The listed range is JNS-1A-1, JNS-1A-2 and JNS-2A; four-core iron-shell config…
The published KOVYEL range is JNS-1A-1, JNS-1A-2 and JNS-2A; four-core iron-shell configuration. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
