KOVYEL supplies JLC C-type connector clamps for non-tension main-to-branch connections in overhead distribution networks. The JLC-811 to JLC-863 range is selected from the main and branch conductor material, designation and cross-section, with copper, aluminium and copper-aluminium combinations available.
KOVYEL supplies JLC C-type connector clamps for non-tension main-to-branch connections in overhead distribution networks. The JLC-811 to JLC-863 range is selected from the main and branch conductor material, designation and cross-section, with copper, aluminium and copper-aluminium combinations available.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | JLC C-Type Connector Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | JLC-811 to JLC-863; conductor combinations selected from the model matrix |
| Standards / reference basis | JLC family selection matrix and project conductor schedule confirmed by KOVYEL |
| Typical applications | Main-to-branch conductor connections; Transformer and service outgoing connections; Grounding and jumper connections; Low- and medium-voltage distribution interfaces |
| Series | JLC-811 to JLC-863 |
| Main conductor range | 16-240 mm² across the published selection matrix |
| Branch conductor range | 16-240 mm² across the published selection matrix |
| Conductor families | LJ(TJ), JKLYJ, LGJ and related copper or aluminium conductors |
| Material combinations | Copper-copper, copper-aluminium, aluminium-aluminium and insulated-conductor combinations |
| Selection rule | Use the exact main and branch conductor designations and cross-sections to select the model |
| Installation | Insert conductors in the matched grooves and tighten the bolted pressure block to the approved procedure |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

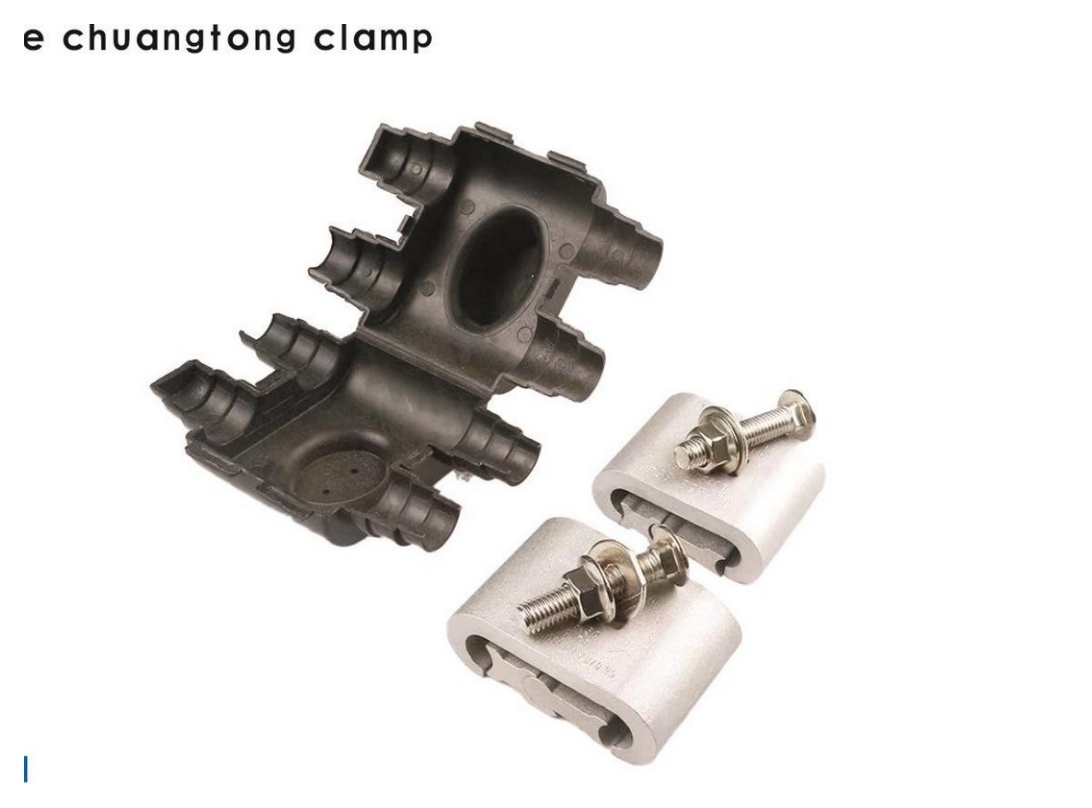

Hinged C-body and pressure block arrangement

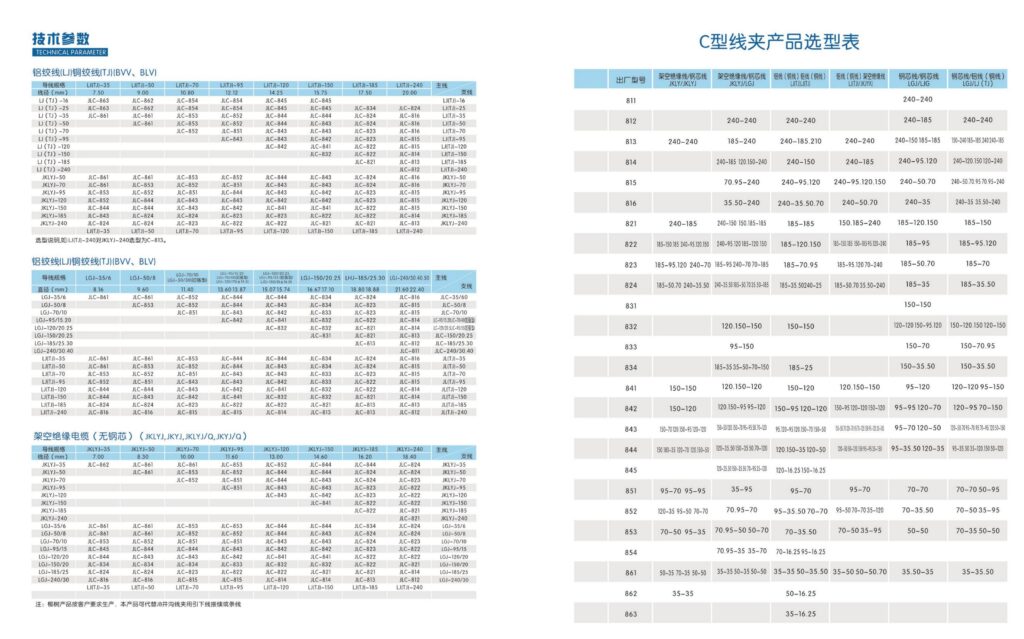

Model matrix covers copper, aluminium and insulated conductor combinations
Bolted installation with reusable connector body
Conductor combination must be confirmed against the selection matrix
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL supplies JLC C-type connector clamps for non-tension main-to-branch connections in overhead distribution networks. The JLC-811 to JLC-863 range is selected from the main and branch conductor material, designation and cross-section, with copper, aluminium and copper-aluminium combinations available. The listed range is JLC-811 to JLC-863; conductor combinations selected from the model matrix.
The published KOVYEL range is JLC-811 to JLC-863; conductor combinations selected from the model matrix. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
