TENSION FITTING · CATALOGUE-BACKED RANGE

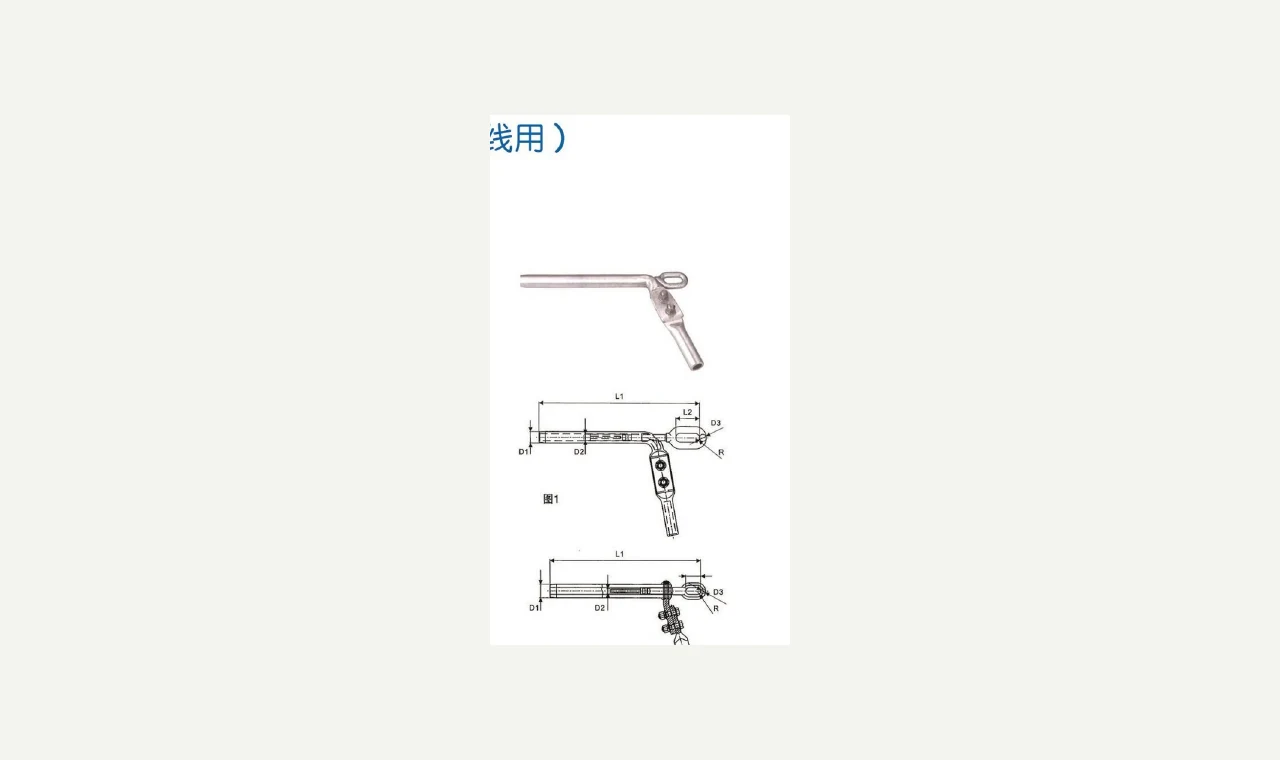

Hydraulic Tension Clamps
Hydraulic-compression tension clamps for steel-cored aluminium conductors and high-load dead-end assemblies.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
NY seriesNY-N seriesNY-Q seriesConductor-specific compression assemblies
APPLICATIONS
Built for real line interfaces.
- Transmission line dead-ends
- Angle towers
- Terminal structures
- High-load conductor anchoring
KEY FEATURES
What the product family covers.
- Conductor-specific steel and aluminium compression components
- Matched compression dimensions and sequence
- Jumper outlet options by model
- Assembly reviewed with conductor and string drawings
SELECTION DATA
Send these details for a matched quotation.
- 01Exact conductor designation
- 02Conductor diameter and RTS
- 03Steel-core data
- 04Required mechanical load
- 05Insulator-string interface
- 06Approved assembly drawing
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
IEC 61284 where specifiedApproved utility drawingCatalogue model data
