Conductor Connectors & Equipment Clamps · Drawing-confirmed project supply
KOVYEL HJBG copper-aluminium composite parallel groove clamps provide transition connections between copper and aluminium conductors. HJBG-10-95, HJBG-16-120 and HJBG-50-240 cover matching conductor ranges from 10 to 240 mm².
KOVYEL HJBG copper-aluminium composite parallel groove clamps provide transition connections between copper and aluminium conductors. HJBG-10-95, HJBG-16-120 and HJBG-50-240 cover matching conductor ranges from 10 to 240 mm².
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | HJBG Copper-Aluminium Composite Parallel Groove Clamps |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | HJBG-10-95, HJBG-16-120 and HJBG-50-240 |
| Standards / reference basis | HJBG model dimensions and conductor material combination confirmed by KOVYEL |
| Typical applications | Copper-to-aluminium conductor transitions; Overhead distribution branches; Grounding and bonding interfaces; Non-load-bearing conductor connections |

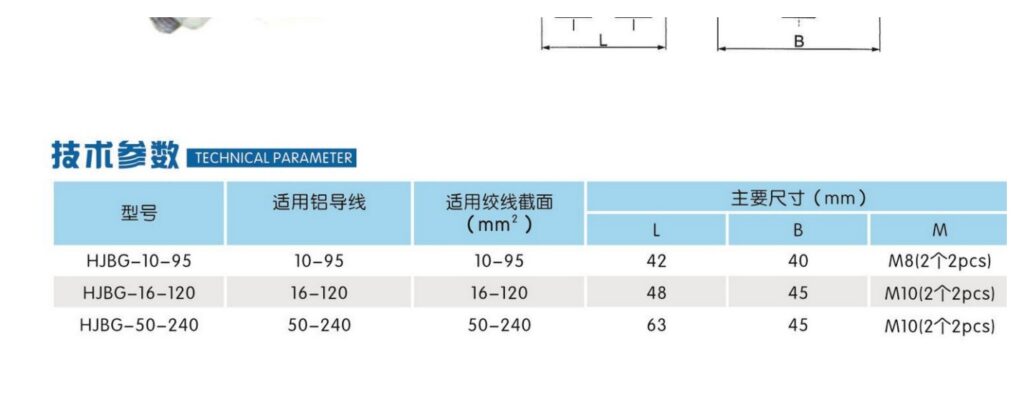

| HJBG-10-95 | Copper conductor 10-95 mm²; aluminium conductor 10-95 mm²; L 42 mm; B 40 mm; two M8 bolts |
| HJBG-16-120 | Copper conductor 16-120 mm²; aluminium conductor 16-120 mm²; L 48 mm; B 45 mm; two M10 bolts |
| HJBG-50-240 | Copper conductor 50-240 mm²; aluminium conductor 50-240 mm²; L 63 mm; B 45 mm; two M10 bolts |
| Dimensions | L and B are in mm |
| Selection | Confirm both conductor materials, sections and installation requirements |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

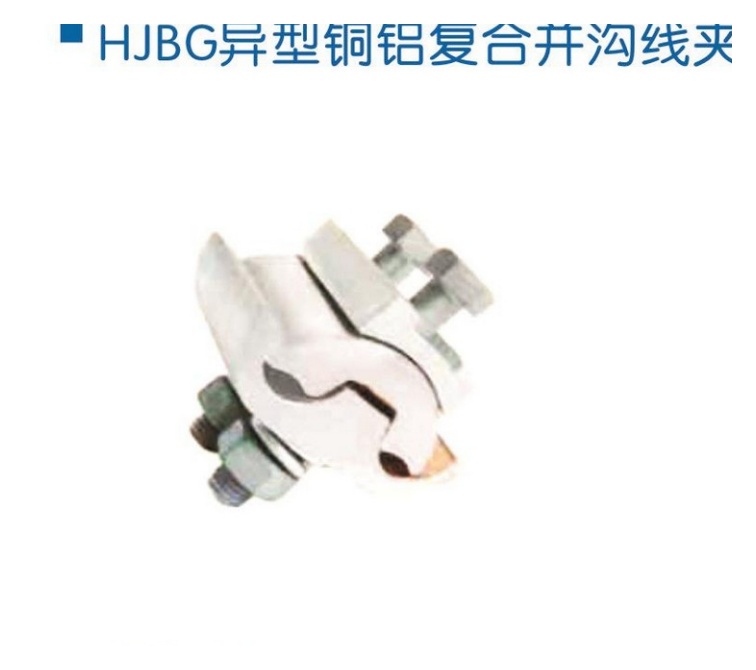

Composite copper-aluminium contact construction
Matched conductor range on both sides
Two-bolt arrangement
Compact transition connector body
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL HJBG copper-aluminium composite parallel groove clamps provide transition connections between copper and aluminium conductors. HJBG-10-95, HJBG-16-120 and HJBG-50-240 cover matching conductor ranges from 10 to 240 mm².
The published KOVYEL range is HJBG-10-95, HJBG-16-120 and HJBG-50-240. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
