KOVYEL MST, MSC and MGS busbar expansion fittings accommodate movement in flat or tubular bus systems, while MG-F bimetal transition plates connect copper and aluminium contact surfaces.
KOVYEL MST, MSC and MGS busbar expansion fittings accommodate movement in flat or tubular bus systems, while MG-F bimetal transition plates connect copper and aluminium contact surfaces.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | Copper Busbar Expansion & Transition Fittings |
|---|---|
| Category | Conductor Connectors & Equipment Clamps |
| Representative range / models | MST 40-125 mm; MSC 150-200 mm; MGS 80-150 mm; MG-F 50-125 mm |
| Standards / reference basis | MST, MSC, MGS and MG-F dimensional tables and busbar requirements confirmed by KOVYEL |
| Typical applications | Substation flat-bus expansion joints; Tubular bus expansion joints; Copper-aluminium transition connections; Switchgear and transformer bus interfaces |

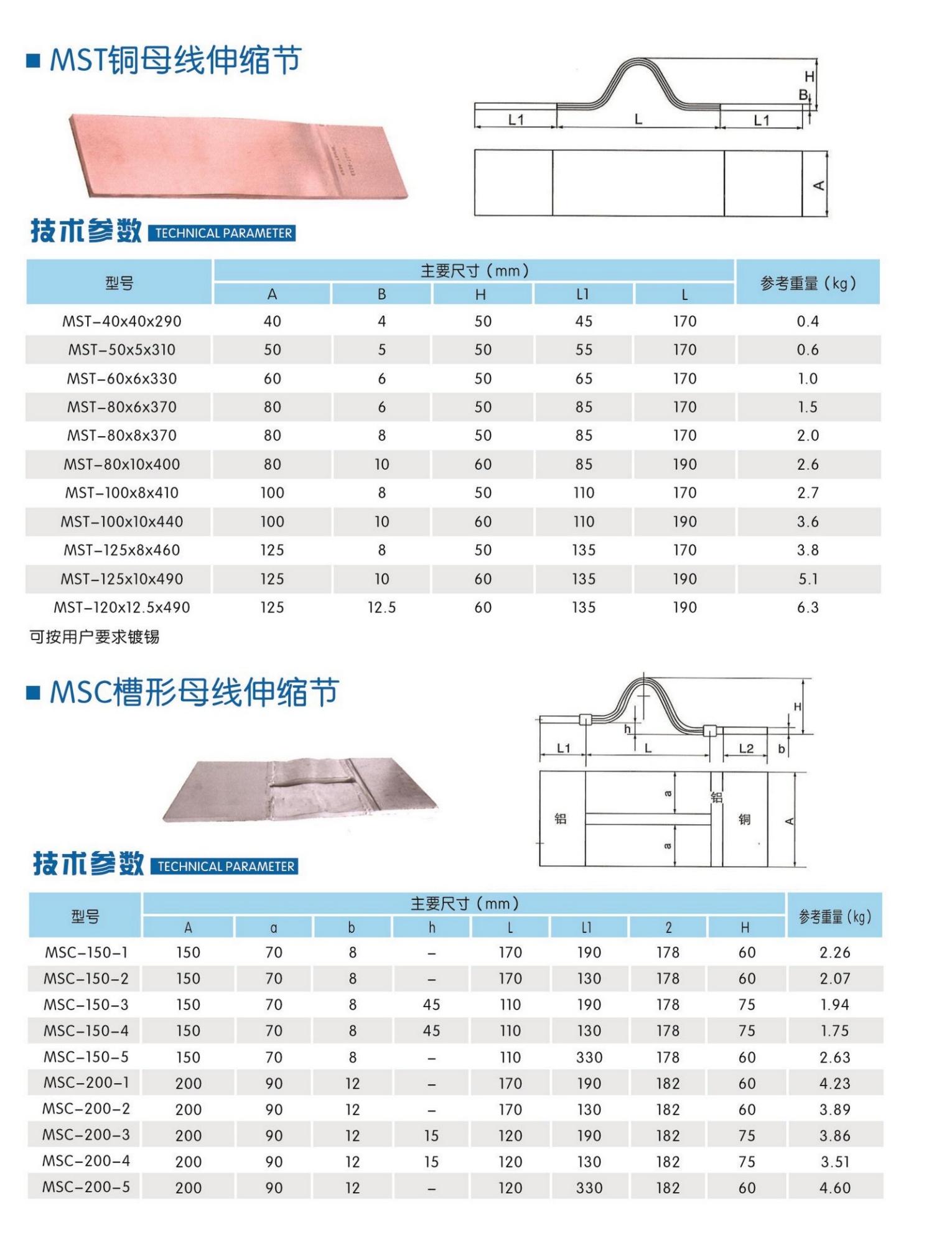

| MST flat-bus range | Widths 40-125 mm; thickness 4-12.5 mm; expansion length 170 or 190 mm |
| MSC channel-bus range | 150 or 200 mm bodies; model-specific plate and offset dimensions |

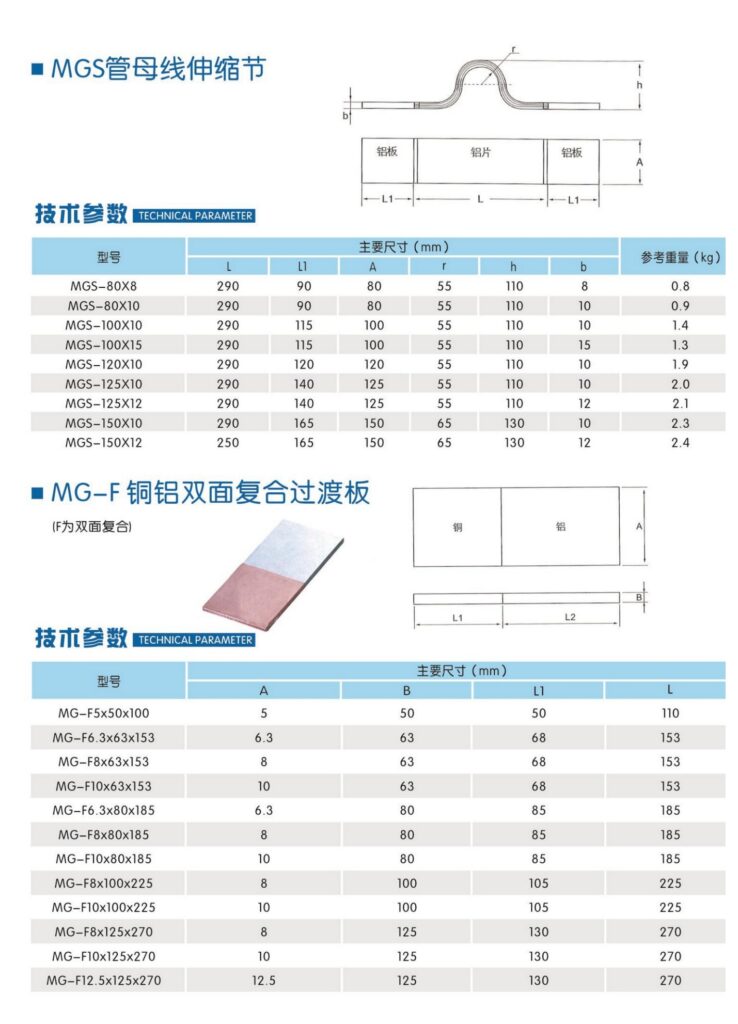

| MGS tubular-bus range | 80-150 mm bus sizes; laminated flexible centre sections |
| MG-F transition range | Copper-aluminium plates for 50, 63, 80, 100 and 125 mm widths |
| Materials | Copper laminations and copper-aluminium bimetal transition plate |
| Selection | Confirm bus geometry, width, thickness, movement and bolt pattern |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Flexible laminated expansion sections
Flat, channel and tubular configurations
Copper-aluminium bimetal transition plates
Multiple width and thickness combinations
Concise catalogue facts for model comparison, product matching and AI-assisted technical research.
KOVYEL MST, MSC and MGS busbar expansion fittings accommodate movement in flat or tubular bus systems, while MG-F bimetal transition plates connect copper and aluminium contact surfaces. The listed range is MST 40-125 mm; MSC 150-200 mm; MGS 80-150 mm; MG-F 50-125 mm.
The published KOVYEL range is MST 40-125 mm; MSC 150-200 mm; MGS 80-150 mm; MG-F 50-125 mm. Final configuration is confirmed against the required electrical, mechanical and dimensional data.
Provide Exact model and quantity per conductor size, Conductor designation, core count, cross-section and outside diameter, System voltage, installation arrangement and required mechanical loads.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
