EQUIPMENT CONNECTOR · CATALOGUE-BACKED RANGE

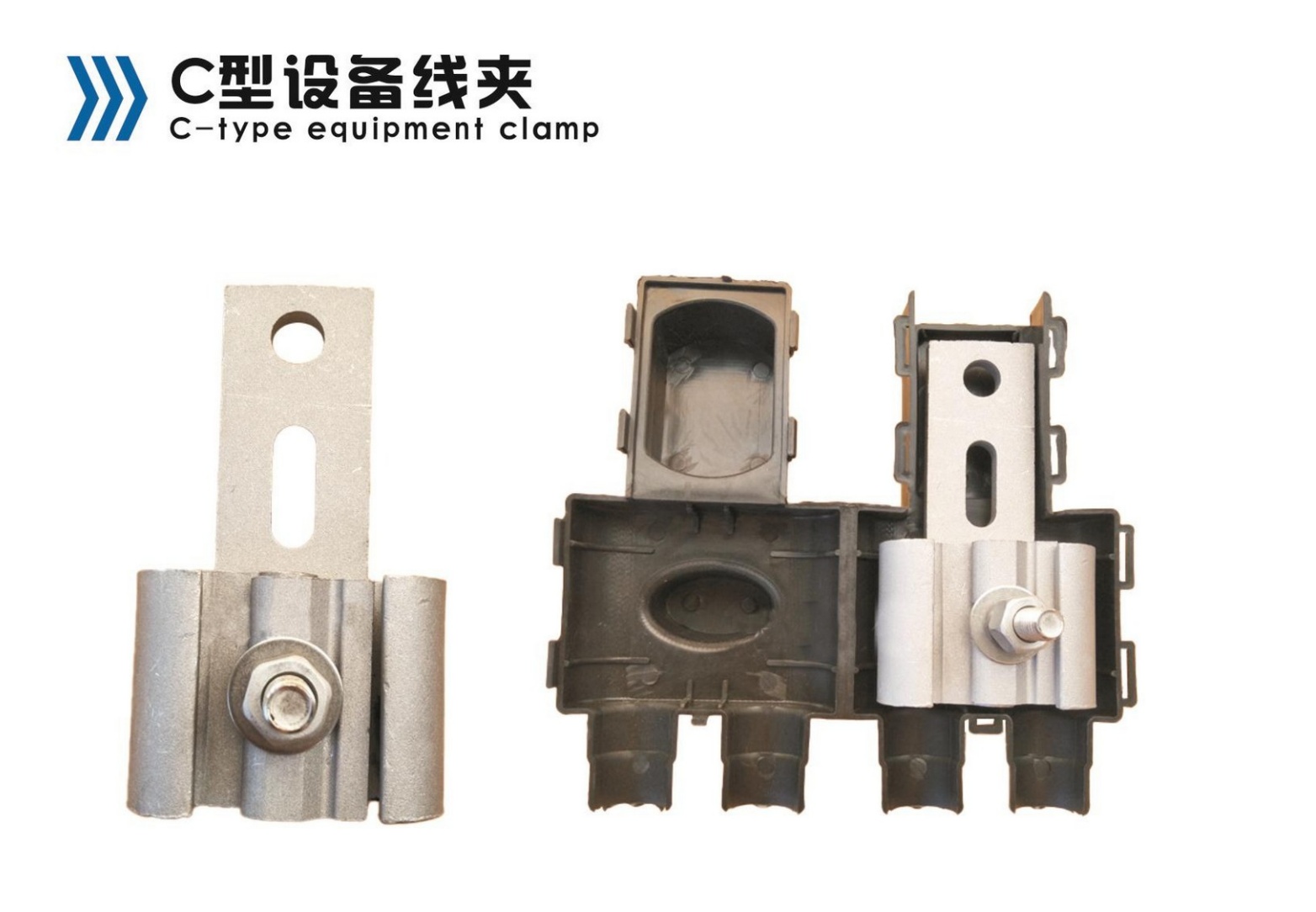

C-Type Equipment Clamps
C-shaped equipment terminal clamps for connecting conductors to electrical equipment terminals and bus interfaces.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
SCC seriesCopper-aluminium transition optionsBolted equipment-terminal variants
APPLICATIONS
Built for real line interfaces.
- Transformer terminals
- Switchgear connections
- Substation equipment
- Bus and conductor interfaces
KEY FEATURES
What the product family covers.
- Bolted connection for installation and inspection
- Material combination selected for conductor and terminal
- Contact surface prepared for electrical duty
- Dimensions matched to equipment terminal arrangement
SELECTION DATA
Send these details for a matched quotation.
- 01Conductor material and section
- 02Equipment terminal material
- 03Terminal dimensions and hole pattern
- 04Rated current
- 05Indoor or outdoor duty
- 06Drawing or sample
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
Approved equipment drawingProject electrical specificationCatalogue model data
