BYD & BYDG Insulated Grounding Clamps
ABC Accessories & Insulation Piercing Connectors · Drawing-confirmed project supply
KOVYEL BYD and BYDG insulated grounding clamps provide colour-coded grounding loops for insulated conductor systems. Aluminium and copper transition versions cover conductor sections from 16 to 240 mm².
Selection begins with the actual project interface.
KOVYEL BYD and BYDG insulated grounding clamps provide colour-coded grounding loops for insulated conductor systems. Aluminium and copper transition versions cover conductor sections from 16 to 240 mm².
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Review the available construction and product views.
Images show representative configurations. Final construction, marking and packing are confirmed against the approved project documents.
The information buyers need before model confirmation.

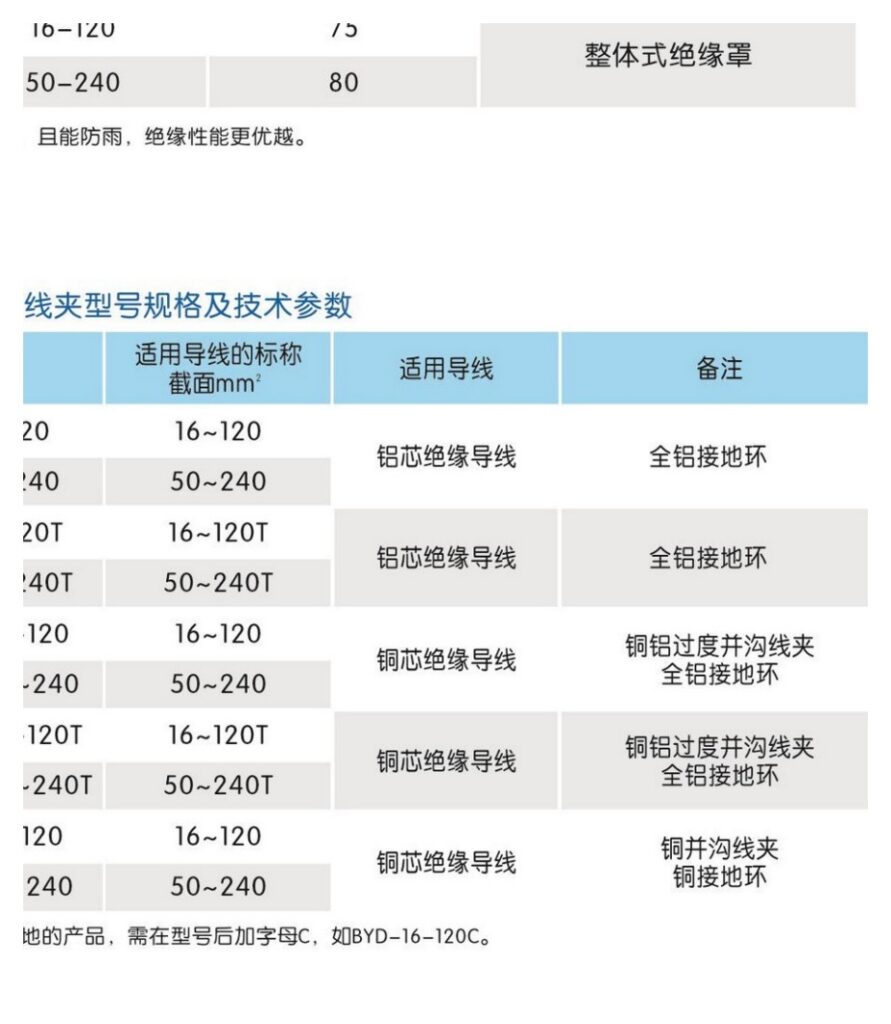

Verified catalogue data is shown below. Dimensions, ratings and interfaces that depend on the project remain subject to the approved drawing and purchase specification.
| Product | BYD & BYDG Insulated Grounding Clamps |
|---|---|
| Category | ABC Accessories & Insulation Piercing Connectors |
| Representative range / models | BYD-16-120, BYD-50-240, BYD-16-120T, BYD-50-240T; BYDG and BYDGT equivalents |
| Standards / reference basis | BYD and BYDG model construction and conductor data confirmed by KOVYEL |
| Typical applications | Grounding points on insulated conductors; Aluminium conductor connections; Copper-aluminium transition grounding; Colour-coded maintenance access |
| BYD-16-120 / 50-240 | Aluminium insulated conductors; integral aluminium loop |
| BYD-16-120T / 50-240T | Aluminium insulated conductors; hook-style aluminium loop |
| BYDG-16-120 / 50-240 | Copper insulated conductors; copper transition body with aluminium loop |
| BYDGT-16-120 / 50-240 | Copper insulated conductors; copper transition body with copper hook loop |
| Conductor range | 16-120 mm² or 50-240 mm² |

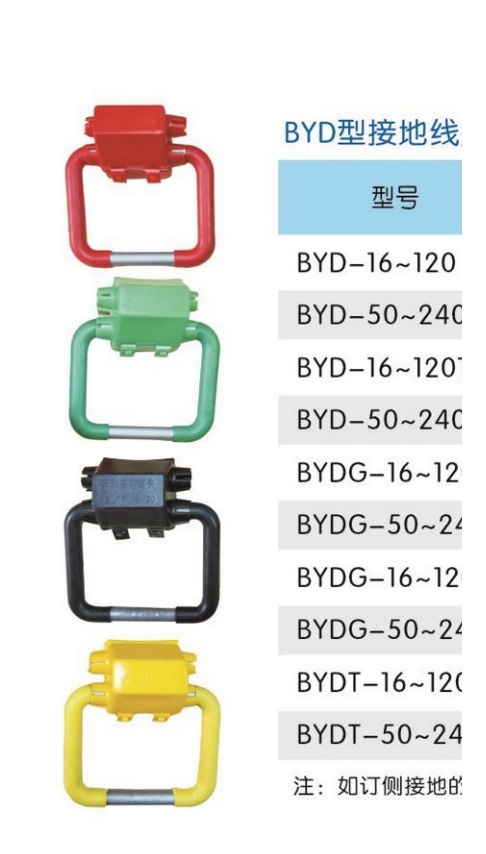

| Identification | Black, red, green and yellow protective loop colours |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Grounding points on insulated conductors
Four colour loop options
Aluminium conductor connections
Aluminium and copper transition versions
Copper-aluminium transition grounding
Integral or hook-style loops
Colour-coded maintenance access
16-240 mm² conductor coverage
