INSULATOR PIN AND SUPPORT HARDWARE · CATALOGUE-BACKED RANGE

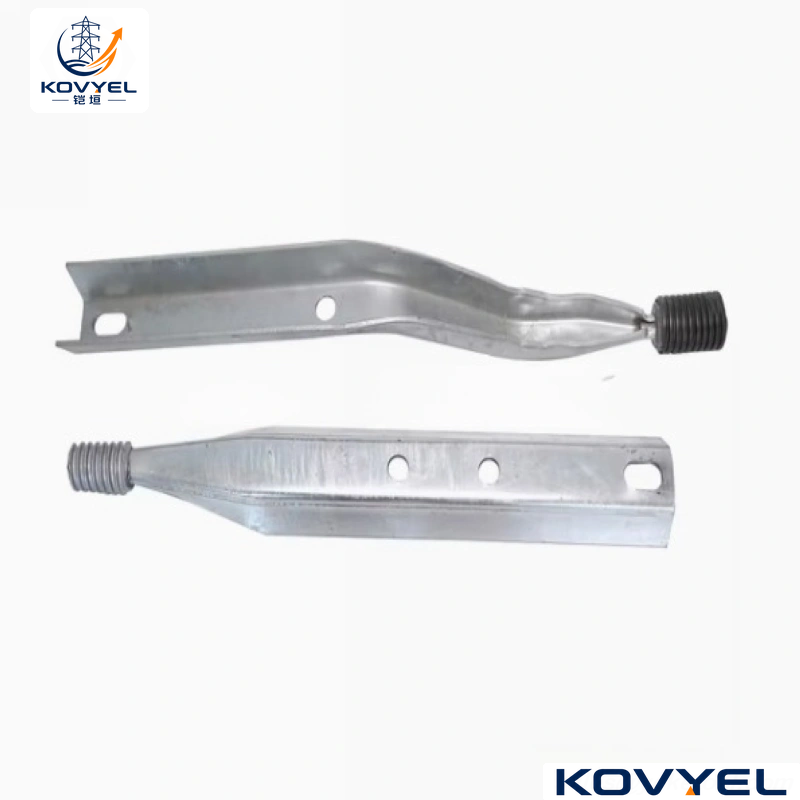

Galvanized Channel Steel | Pole Top Pin with Lead Thread | 1-3/8 Inch Lead Thread Pin

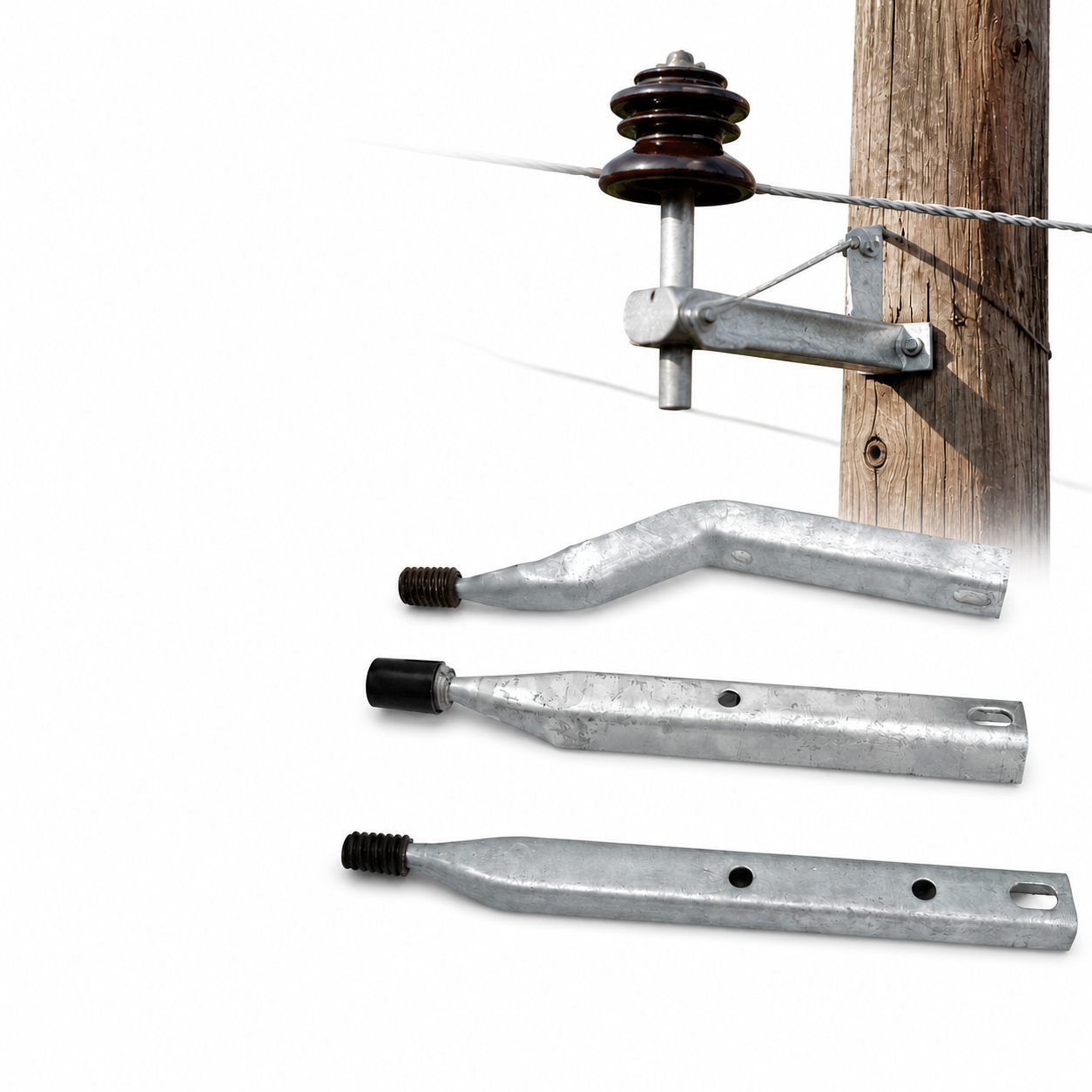

Galvanized Channel Steel | Pole Top Pin with Lead Thread | 1-3/8 Inch Lead Thread Pin for mounting line-post or pin-type insulators on overhead distribution structures.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
Pole-top and channel-mounted pin arrangementsLead-thread and project-specified thread optionsHot-dip galvanized steel construction
APPLICATIONS
Built for real line interfaces.
- Distribution poles
- Crossarm assemblies
- Line-post insulator supports
- Utility line construction
KEY FEATURES
What the product family covers.
- Thread and insulator interface matched before supply
- Mounting holes coordinated with the structure drawing
- Corrosion protection selected for the project environment
- Supplied with related pole-line hardware where required
SELECTION DATA
Send these details for a matched quotation.
- 01Insulator type and thread
- 02Pin geometry
- 03Mounting-hole arrangement
- 04Material and finish
- 05Mechanical duty
- 06Approved pole or crossarm drawing
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
Approved project specification
