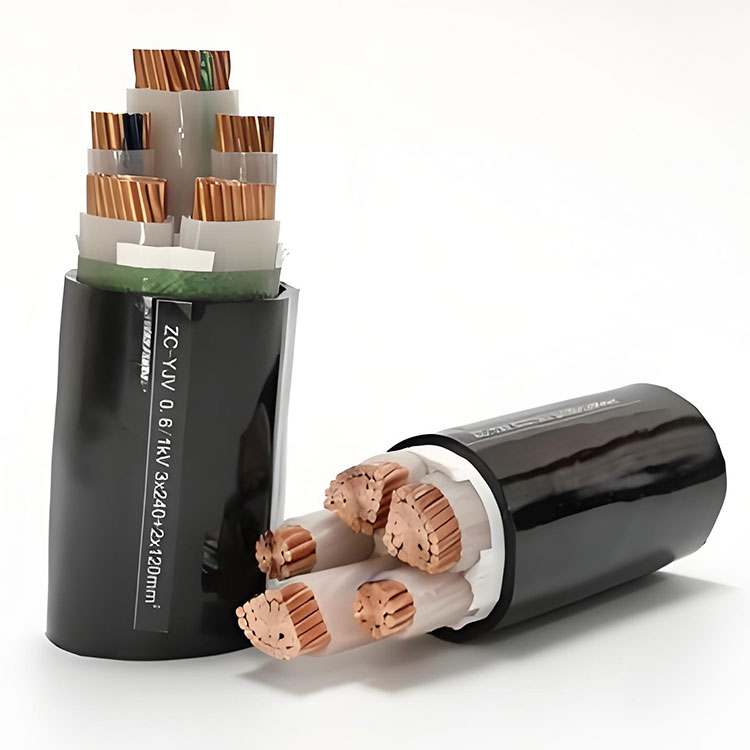

Shielded Low- and Medium-Voltage Power Cable
Power & Control Cables · Drawing-confirmed project supply
Low- and medium-voltage power cable family with project-matched conductor screening, metallic shielding and sheath construction for distribution circuits requiring controlled electric fields or EMC performance.
Shielded Low- and Medium-Voltage Power Cable: product overview
Low- and medium-voltage power cable family with project-matched conductor screening, metallic shielding and sheath construction for distribution circuits requiring controlled electric fields or EMC performance.
KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.
Published specifications and model selection
Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.
| Product | Shielded Low- and Medium-Voltage Power Cable |
|---|---|
| Category | Power & Control Cables |
| Representative range / models | 0.6/1 kV shielded power cable; 6–35 kV XLPE screened power cable; Copper-wire or copper-tape metallic screen; Armored and water-blocked options |
| Standards / reference basis | IEC 60502-1 or IEC 60502-2 as applicable; IEC 60228 conductor requirements where specified; Approved project cable specification and test plan |
| Typical applications | Utility and industrial distribution; Substations and power plants; Renewable-energy collector systems; EMC-sensitive industrial installations |
| Final dimensions and ratings | Confirmed against the approved drawing, equipment interface and project specification |
| Supply basis | Project-specific RFQ, coordinated documentation and export packing |
Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.
Where this product family is typically used.
Utility and industrial distribution
Copper or aluminum conductor options
Substations and power plants
XLPE insulation for medium-voltage designs
Renewable-energy collector systems
Metallic screen sized for earth-fault duty
EMC-sensitive industrial installations
Armor, water blocking and LSZH options available
From technical approval to a defined supply scope.
Review the exact Shielded Low- and Medium-Voltage Power Cable Supplier configuration against the approved project schedule, installation interfaces and required acceptance documents before quotation.
Shielded Low- and Medium-Voltage Power Cable Supplier: power-cable construction and circuit approval
Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for Shielded Low- and Medium-Voltage Power Cable Supplier.
| Item | Information for technical approval |
|---|---|
| 01 | Exact offered model and BOQ reference for Shielded Low- and Medium-Voltage Power Cable Supplier, with the approved drawing revision. |
| 02 | Voltage designation, conductor material, core count and cross-section. |
| 03 | Specified insulation, screens, armour, sheath and any required fire or LSZH performance. |
| 04 | Installation conditions, circuit lengths, drum plan and compatible joints and terminations. |
Define the BOQ supply scope
Use the circuit schedule to define the exact voltage designation, conductor material, core count, cross-section and cable construction. Separate drums, joints, terminations, glands and cleats. Identify any special screening, armour or fire-performance requirements explicitly.
Technical submittals and inspection requirements
Provide the circuit, installation and environmental schedules and required electrical acceptance criteria. Request the offered cable construction, dimensions, installation limits and applicable inspection or test records. Confirm termination and joint compatibility, and verify any fire or LSZH requirement for the exact construction.
Packing, identification and delivery
Agree drum lengths and tolerances, cable marking, end protection and delivery sequence by circuit. Coordinate handling and shipping constraints with the cable installation plan.
Buyer questions
Can cables with the same cross-section be treated as equivalent?
Compare voltage designation, conductor material and construction, insulation, screens, armour and sheath where specified, installation conditions and required acceptance criteria as well as cross-section.
How should Shielded Low- and Medium-Voltage Power Cable Supplier be identified in the RFQ?
Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.
Related selection resources
Send these details for an accurate offer.
A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.
Have a BOQ, drawing or equipment schedule?
Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.
PRODUCT SELECTION AND PROCUREMENT
Compare products and prepare your quotation.
Review the published dimensions, duty and interfaces for each item. Related catalogue products are comparison references; suitability and interchangeability follow the confirmed specification.
