KOVYEL · POWER & CONTROL CABLES Low-Voltage XLPE Insulated Power Cables
POWER CABLE · CATALOGUE-BACKED RANGE

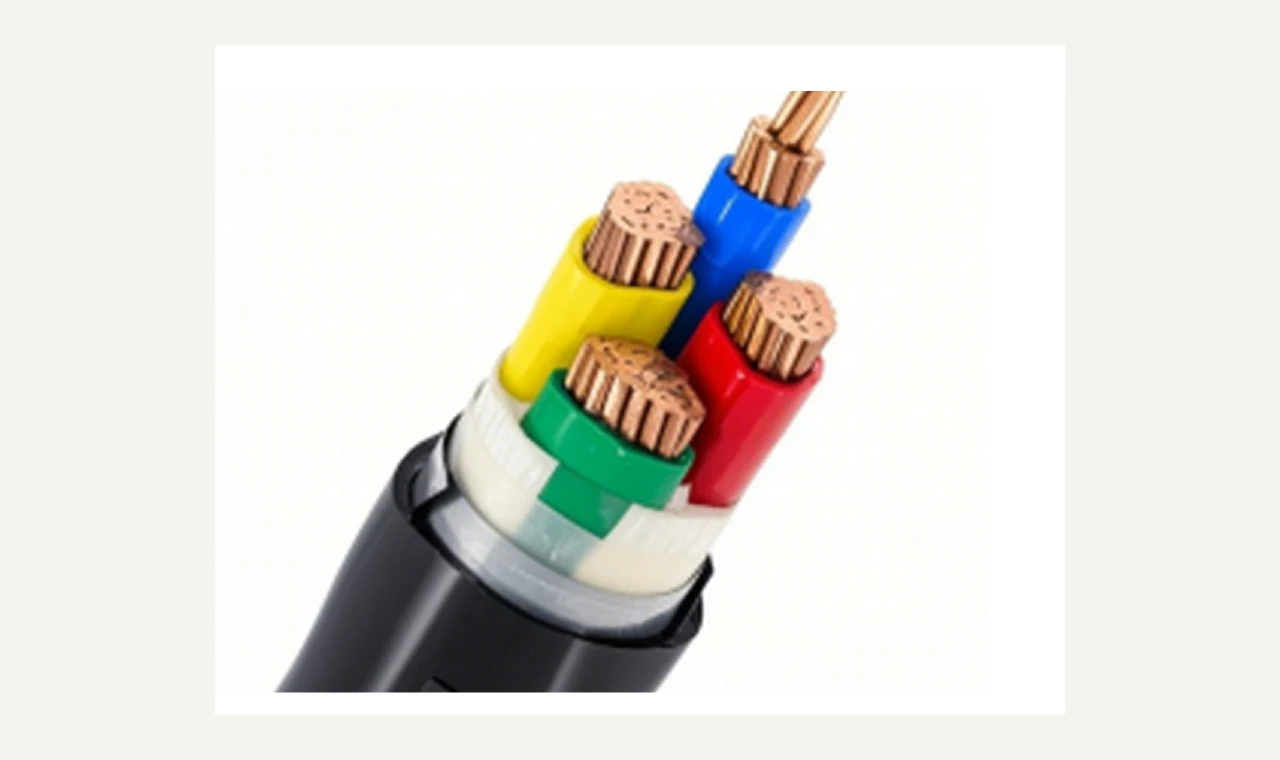

Low-Voltage XLPE Insulated Power Cables

Power & Control Cables · Drawing-confirmed project supply

Low-voltage XLPE power cables for utility, building and industrial distribution circuits.

Drawing-Matched Project RFQ Supply IEC 60502-1
Product categoryPower & Control Cables
Representative rangeSingle-core
Technical basisIEC 60502-1
Supply modeProject quotation / coordinated supply
PRODUCT OVERVIEW

Low-Voltage XLPE Insulated Power Cables: product overview

Low-voltage XLPE power cables for utility, building and industrial distribution circuits.

KOVYEL confirms final selection against the approved drawing, interface dimensions, service conditions and purchase specification before quotation and supply. Catalogue references define the product family; the approved project documents remain the controlling basis.

TECHNICAL & PROCUREMENT DATA

Published specifications and model selection

Published product information is shown below. Confirm the offered model, dimensions, ratings and mating interfaces against the approved drawing and purchase specification before ordering.

ProductLow-Voltage XLPE Insulated Power Cables
CategoryPower & Control Cables
Representative range / modelsSingle-core; 2-core; 3-core; 4-core and 5-core; 0.6/1kV and 1.8/3kV catalogue range
Standards / reference basisIEC 60502-1; GB/T 12706.1 where specified; Approved project specification
Typical applicationsLV distribution boards; Transformer secondary connections; Building services; Industrial power circuits
Final dimensions and ratingsConfirmed against the approved drawing, equipment interface and project specification
Supply basisProject-specific RFQ, coordinated documentation and export packing

Unverified dimensions or performance ratings are not published as fixed values. Submit the controlling drawing or requirement schedule for final confirmation.

TYPICAL APPLICATIONS

Where this product family is typically used.

01

LV distribution boards

Copper or aluminium conductor options

02

Transformer secondary connections

XLPE insulation

03

Building services

Armoured or unarmoured construction

04

Industrial power circuits

Sheath and fire-performance options subject to specification

SELECTION & PROCUREMENT

From technical approval to a defined supply scope.

Match the exact Low-Voltage XLPE Insulated Power Cables Supplier model to the approved cable, equipment and installation schedule before comparing the supply scope and required acceptance documents.

Low-Voltage XLPE Insulated Power Cables Supplier: cable construction and installation schedule approval

Use the following product-specific inputs in the technical clarification and identify the controlling drawing revision for Low-Voltage XLPE Insulated Power Cables Supplier.

ItemInformation for technical approval
01Exact offered model and BOQ item for Low-Voltage XLPE Insulated Power Cables Supplier, with the controlling drawing revision.
02Exact voltage designation, conductor material, core count and cross-section.
03Insulation, screening, armour and sheath construction as specified by the project.
04Installation conditions, circuit lengths, drum plan and matched termination or joint requirements.

Define the BOQ supply scope

Identify each cable by its exact voltage designation, conductor, core count, cross-section and insulation/sheath construction. Separate cable lengths, drums, terminations, joints, glands and cleats in the BOQ. Clarify conductor-only or cable-only offers against complete installed cable packages.

Technical submittals and inspection requirements

Submit the cable schedule, installation conditions and required electrical and mechanical acceptance criteria. Request the offered construction data, dimensions, applicable routine or type-test records and installation information. Confirm termination and joint compatibility and any project fire-performance requirements for the exact construction.

Packing, identification and delivery

Agree drum lengths, length tolerances, cable and drum marking and delivery sequence by circuit. Coordinate transport and handling constraints with the approved installation plan.

Buyer questions

Can cable offers be compared using only conductor cross-section?

Also match voltage designation, conductor material and construction, core arrangement, insulation, screen, armour and sheath where specified, installation conditions and required acceptance criteria.

How should Low-Voltage XLPE Insulated Power Cables Supplier be identified in the RFQ?

Use the exact offered model and project BOQ item, with the approved drawing revision, required quantity and destination. Include the product-specific approval inputs above and identify any separately requested accessories or documents.

Related selection resources

Send the BOQ and drawings for quotation

QUOTATION CHECKLIST

Send these details for an accurate offer.

A complete RFQ helps KOVYEL confirm the product configuration, production basis, documentation, export packing and delivery proposal without repeated clarification.

01Rated voltage
02Conductor material
03Core count and cross-section
04Armour requirement
05Sheath and fire performance
06Installation method and length

Have a BOQ, drawing or equipment schedule?

Send the technical documents with the form below. KOVYEL will review the product interface, required standard, quantity and destination before preparing the quotation.

Send Project RFQ →

PRODUCT SELECTION AND PROCUREMENT

Compare products and prepare your quotation.

Review the published dimensions, duty and interfaces for each item. Related catalogue products are comparison references; suitability and interchangeability follow the confirmed specification.
