CLEVIS PIN AND RETAINING HARDWARE · CATALOGUE-BACKED RANGE
SAE J493 Clevis Pin ASME B18.8.1 Clevis Pins

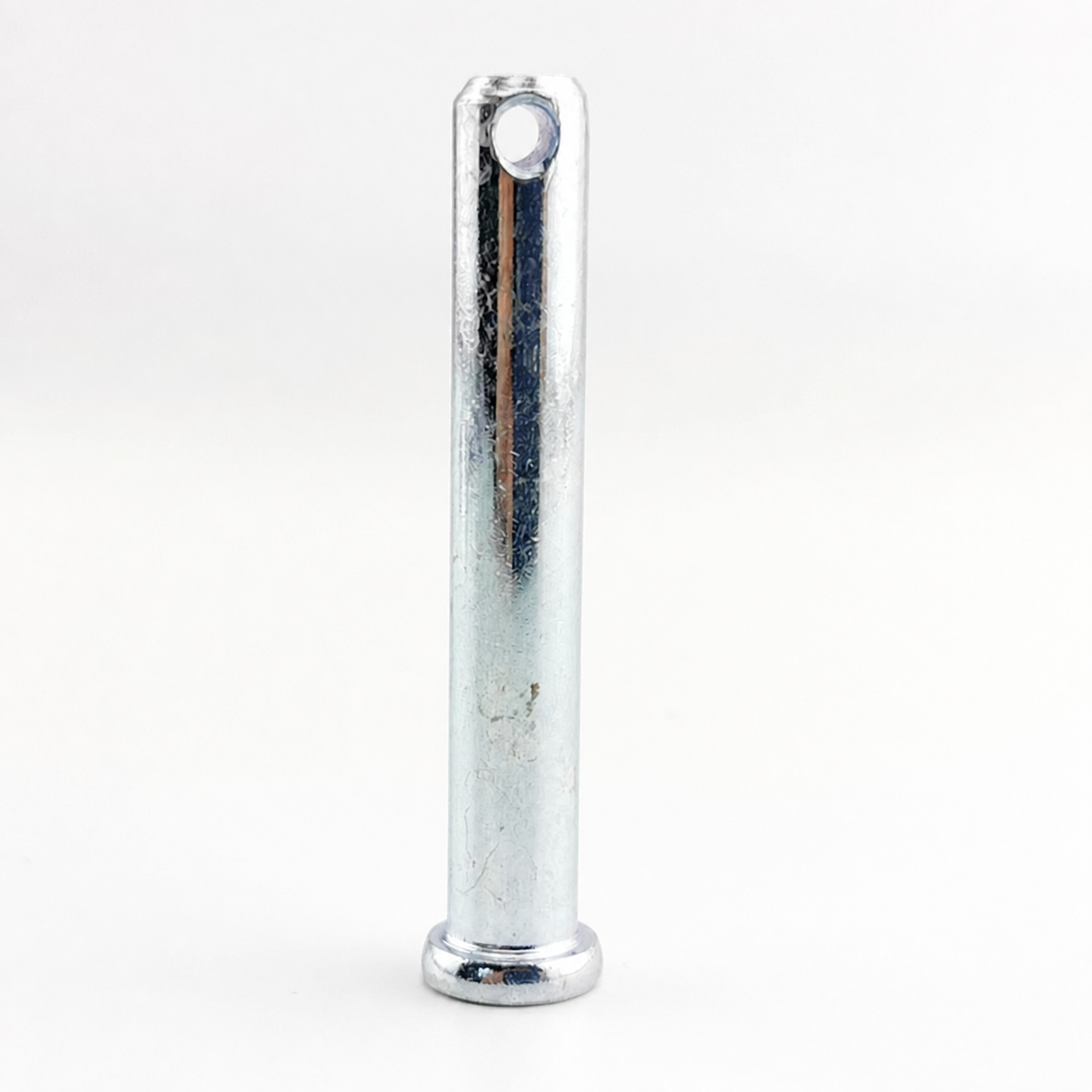

SAE J493 Clevis Pin ASME B18.8.1 Clevis Pins for pinned connections in pole-line, insulator and structure-hardware assemblies.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
Plain and hot-dip galvanized clevis pinsCotter-pin retained arrangementsProject-matched diameter and grip length
APPLICATIONS
Built for real line interfaces.
- Insulator and line-hardware assemblies
- Pole and crossarm connections
- Guying hardware
- Tower and structure fittings
KEY FEATURES
What the product family covers.
- Pin diameter and grip length matched to the assembly
- Retaining method confirmed from the drawing
- Material and finish selected for the service environment
- Mechanical duty reviewed before supply
SELECTION DATA
Send these details for a matched quotation.
- 01Pin diameter
- 02Grip and overall length
- 03Hole and retaining-pin dimensions
- 04Material and finish
- 05Mechanical class
- 06Approved assembly drawing
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
ASME B18.8.1SAE J493Approved project specification or drawing
