GUY-WIRE ROPE CLIP · CATALOGUE-BACKED RANGE

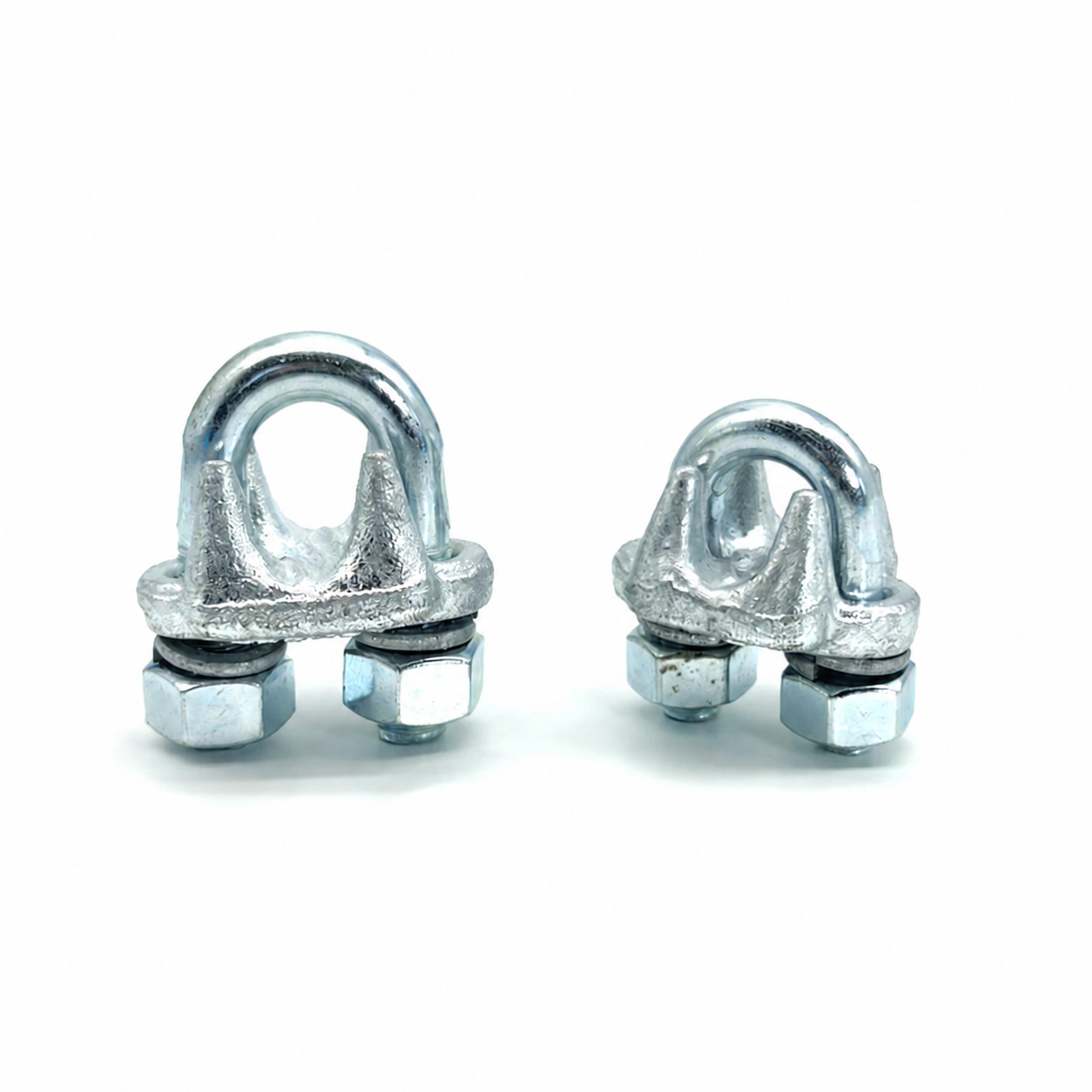

ASME B30.26 Wire Rope Clip for Rigging and Lifting
ASME B30.26 Wire Rope Clip for Rigging and Lifting for guy-wire, dead-end and structure-connection assemblies where confirmed by the approved line drawing.
AVAILABLE RANGE
Representative product families.
Final model selection is confirmed against the approved conductor, equipment interface, drawings and project specification.
Project-matched sizes and end configurationsHot-dip galvanized or stainless-steel optionsPins, bolts and locking components as specified
APPLICATIONS
Built for real line interfaces.
- Pole and tower guying
- Dead-end structure assemblies
- Utility structure connections
- Line construction and maintenance
KEY FEATURES
What the product family covers.
- Connection geometry matched to the approved assembly
- Mechanical class confirmed against the line schedule
- Corrosion protection selected for the service environment
- Supplied with coordinated pins and fasteners where specified
SELECTION DATA
Send these details for a matched quotation.
- 01Exact hardware type and size
- 02Required working or ultimate load
- 03End and pin configuration
- 04Material and finish
- 05Applicable standard or drawing
- 06Quantity and packing requirement
TECHNICAL BASIS
Confirmed before supply.
Standards, drawings, dimensions and test requirements are reviewed item by item. Catalogue model references are not a substitute for the approved project specification.
ASME B30.26Approved project specification
